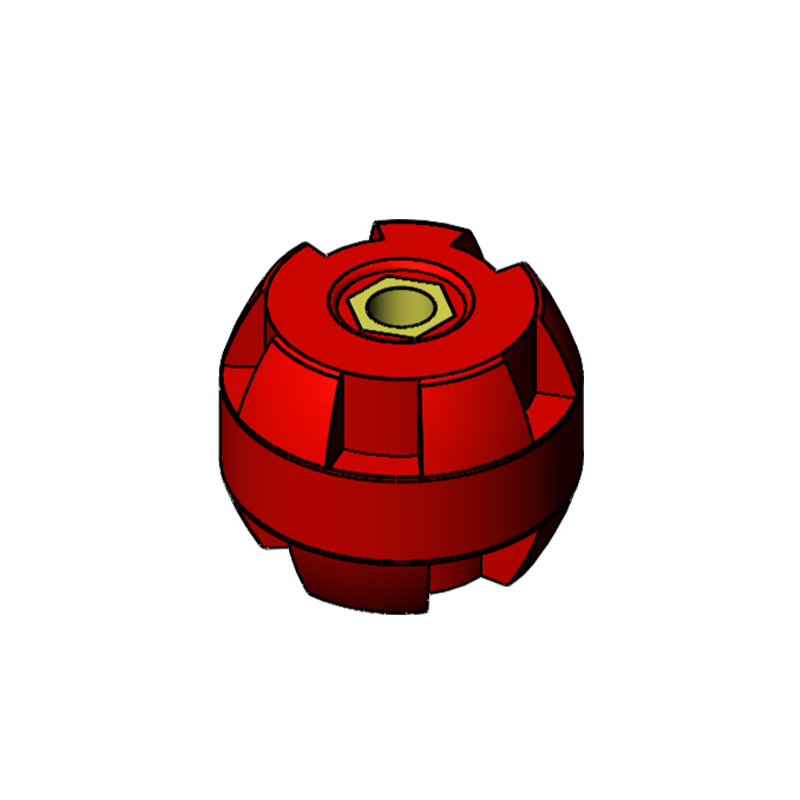

Standoff Insulators, With 3/8”Brass Insert

Item Number 6004285

Provides electrical insulation and mechanical support in a wide variety of assemblies. Used to busbar supports by providing insulation between a conductor and a mounting surface.

ISORoHS

Product Classification

Product Classification
Item Number 6004285
Part Number
Detail Description Standoff Insulators, With 3/8”Brass Insert

General Specifications

General Specifications
Material BMC
Insert Material Brass
Dimensions
Outer Diameter 44.5 mm | 1.75 in
Height 35 mm | 1.37 in
Environmental Specifications
Operating Temperature -30 °C to +105 °C (-22 °F to +221 °F)
Flame Resistant UL94 V-2
Electrical Specifications
Voltage 600 V
Short Time Electrical Strength 1000 V
Packaging and Weights
Height, Packed 150 mm | 5.90 in
Width, Packed 100 mm | 3.93 in
UOM Pcs
Packaging Bag
Weight, Gross 0.085 kg | 0.187 lbs
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
