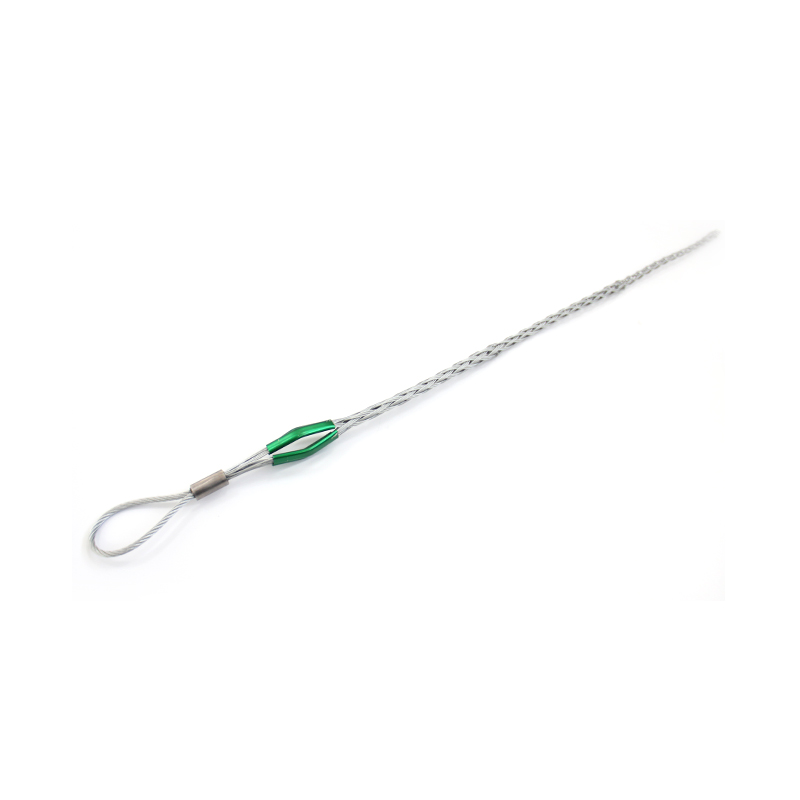

Pulling Grip,Heavy Duty,Single Eye,For 0.25-0.49 in Cable,Galvanized Steel,Dark Green
Item Number 6009236
Used for pulling fiber optic cables in overhead, underground, conduits, and enclosures. Flexible eye protects cable head from damage. Smooth surface and flexible eye make the pulling grips Optics an excellent tool for pulling cables in and around confined areas. The aluminum shoulder protectors of the pulling grip center the grip within a raceway and keeps the cables safe from abrasions. CE certified.
Product Classification
| Product Classification | |
| Item Number | 6009236 |
| Part Number | – |
| Detail Description | Pulling Grip,Heavy Duty,Single Eye,For 0.25-0.49 in Cable,Galvanized Steel,Dark Green |
General Specifications
| Details | |
| Cable Range | 0.25-0.49 in | 6.4-12.5 mm |
| Mesh Length | 26.0 in | 660.4 mm |
| Eye Length | 9.0 in | 228.6 mm |
| Approximate Break Strength | 6800 lbs | 3084 kg |
| Working Load | 1360 lbs | 617 kg (Safety Factor 5*) |
| Mesh Material | Galvanized Steel |
| Color Code | Dark Green |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 0.55 lb | 0.25 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
