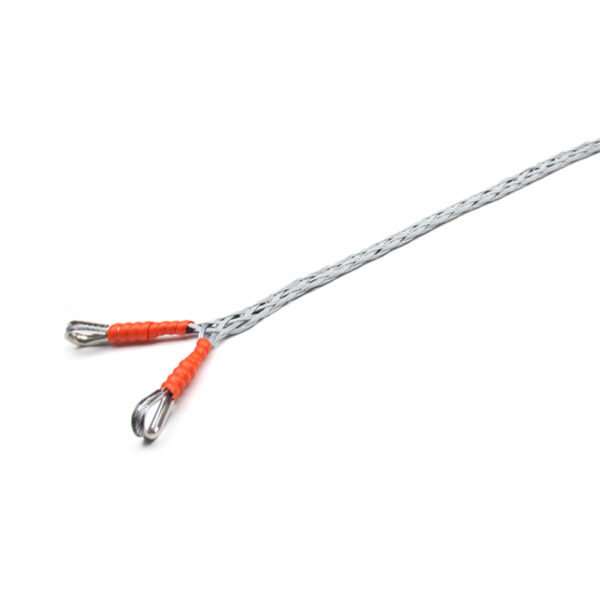

Whipsock, Galvanized Steel, Hose OD Range 2.756-3.346”

Item Number 6006692

High-pressure hose safety restraint device, reliably stops the unpredictable and potentially hazardous movement of a high-pressure hose. Suited for applications where the media being transferred is under higher working pressures such as air, water, hydraulic, and slurry. Prevent injuries or accidents resulting from hose or coupling failure. Two mounting points and the long gripping area. CE certified.

ISORoHScecert badge

Product Classification

Classification
Material Number 6006692
Part Number
Status Active
Detail Description Whipsock, galvanized steel, hose OD range 2.756-3.346”

General Specifications

Details
Hose OD 2.756-3.346 in | 70.0-85.0 mm
Total Length 50.0 in | 1270.0 mm
Max. Working Pressure 800 psi
Approx. Break Strength 20502 lbs | 9300 kg
Material Type Galvanized Steel
Packaging and Weights
UOM 1 pcs
Packaging Bag
Weight, gross 3.198 lb | 1.451 kg
Certifications
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
CE Compliant
