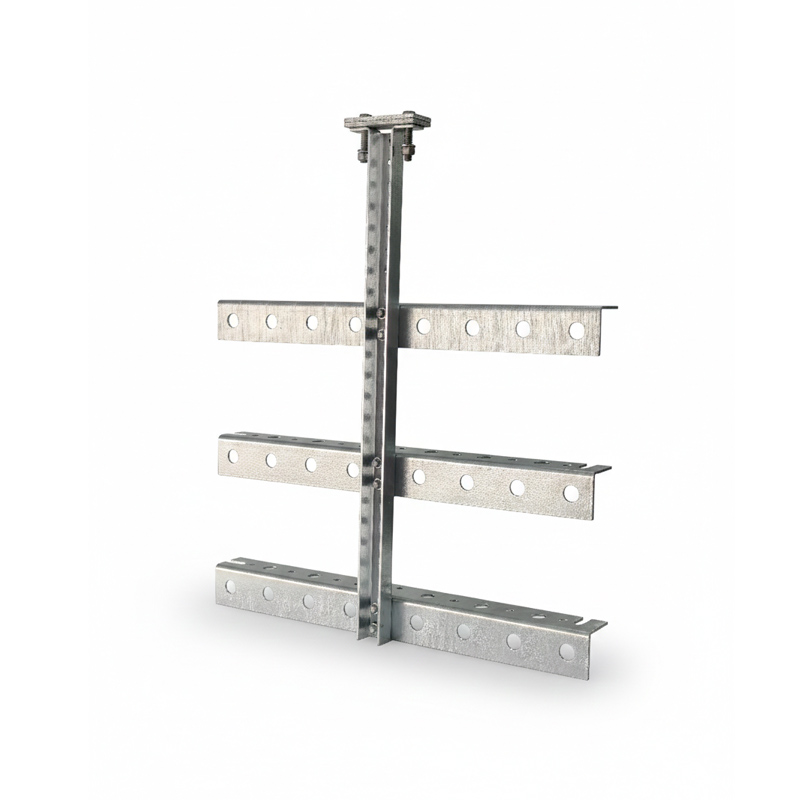

T-Bracket Assembly, 24”, Galvanized

Item Number 6009674

Used to organize and support cable runs under ice bridge channels.

Product Classification
Item Number	6009674
Part Number	–
Detail Description	T-Bracket assembly, 24”, galvanized

General Specifications
Material	Q235
Surface Treatment	Hot Dip Galvanized
Number Of Horizontal Trapeze Section	3
Number Of Vertical Trapeze Section	1
Number Of Long Washer	2
Number Of 3/8” Hex Nut	8
Number Of 3/8” Spring Washer	8
Number Of 3/8”x2” Hex Bolt	2
Number Of 3/8”x1” Hex Bolt	6
Dimensions
Vertical Trapeze Section Length	609.6 mm \| 24 in
Vertical Trapeze Section Width	35.0 mm \| 1.38 in
Horizontal Trapeze Section Length	558.8 mm \| 22 in
Horizontal Trapeze Section Width	54.0 mm \| 2.13 in
Packaging and Weights
Height, Packed	60 mm \| 2.36 in
Width, Packed	280 mm \| 11.02 in
Length, Packed	690 mm \| 27.17 in
UOM	Kit
Packaging	Carton
Weight, Gross	5.465 kg \| 12.048 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
