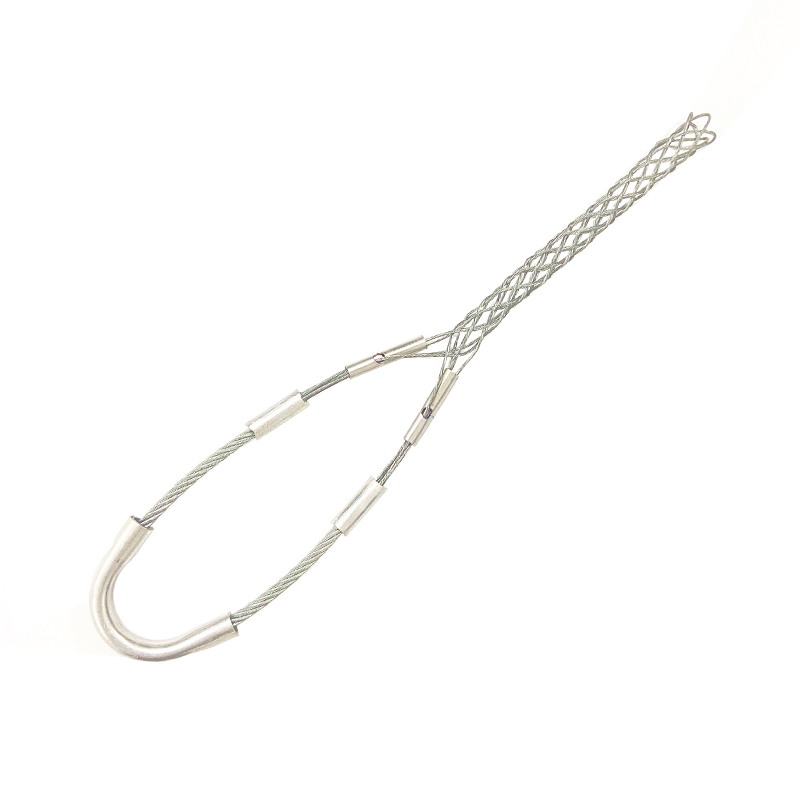

Support Grips, Service Drop, Single Eye Closed Mesh, Galvanized Steel, Cable Range 0.53-0.73”
Item Number 6003547
Provide support for light duty cable, fiber optic cable and service entrance cable. Used for absorb additional strain from vibration, expansion, contraction and flexing. Galvanized steel wire mesh is for indoor use only. Easy installation. CE certified.
Product Classification
| Classification | |
| Material Number | 6003547 |
| Part Number | – |
| Status | Active |
| Detail Description | Support grips, service drop, single eye closed mesh, galvanized steel, cable range 0.53-0.73” |
General Specifications
| Details | |
| Cable Range | 0.53-0.73 in | 13.46-18.54 mm |
| Mesh Length | 6.0 in | 152.4 mm |
| Bale Length | 7.0 in | 177.8 mm |
| Approx. Break Strength | 1000 lbs | 453.6 kg |
| Working Load | 100 lbs | 45.4 kg (Safety Factor 10 *) |
| Mesh Material | Galvanized Steel |
| Package | |
| Packaging Quantity | 1 pcs |
| Weight, gross | 0.097 lb | 0.044 kg |
| Certifications | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
