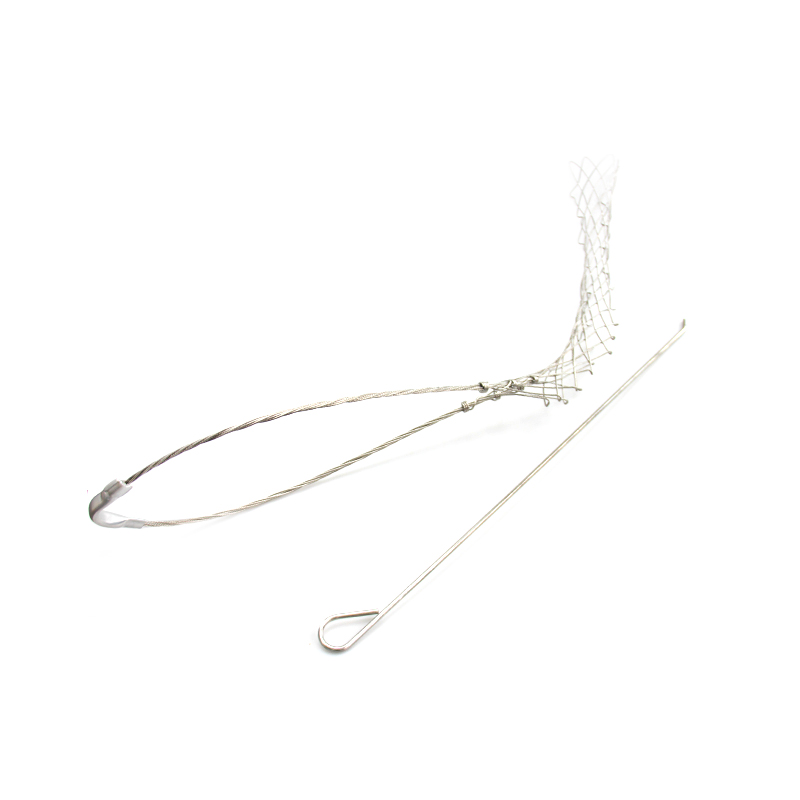

Support Grip, Heavy Duty, Single Eye, Split Rod, for 1.00-1.25 in Cable
Support grips are designed to hold the weight of cable on vertical or sloping runs and may be used indoors or outdoors to support electrical and fiber optic cable, metal rods and tubing. Use Split Rod Grips for cable runs that are already terminated with connectors. Used for support to absorb additional strain from vibration, expansion, contraction and flexing. Single eye for use when cable is vertical and for applications where cable bend. CE certified.
Product Classification
Product Classification | |
Material Number | 6008599 |
Part Number | – |
Detail Description | Support Grip, Heavy Duty,Single Eye, Split Rod, for 1.00-1.25 in Cable |
General Specifications
Details | |
Cable Range | 1.00-1.25 in | 25.4-31.75 mm |
Mesh Length | 15.0 in | 381.0 mm |
Eye Length | 9.0 in | 228.6 mm |
Approximate Break Strength | 2700 lbs | 1224 kg |
Working Load | 270 lbs | 122.4 kg (Safety Factor 10*) |
Mesh Material | Stainless Steel |
Packaging and Weights | |
UOM | 1 pcs |
Packaging | Bag |
Weight, gross | 0.40 lb | 0.18 kg |
Certifications and Compliance | |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
RoHS | Compliant |
CE | Compliant |
