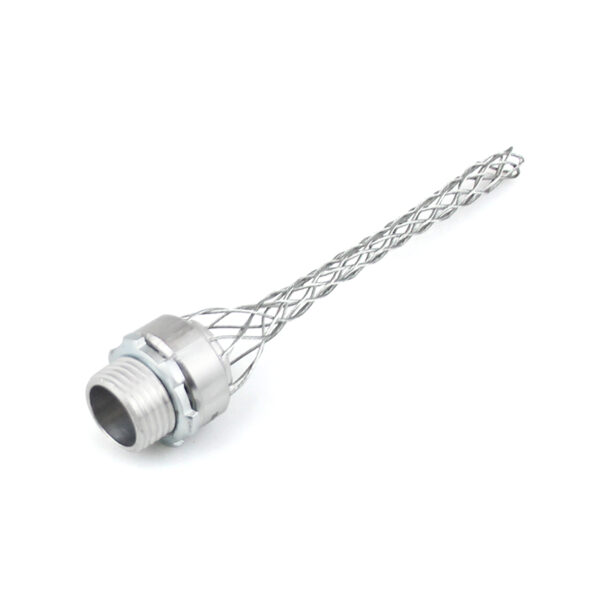

Strain Relief Grip, Dust Tight, NPT 3/4″, Non-Insulated, Cable Range 0.52-0.73″
Item Number 6003063
For indoor use in wiring of enclosures, power boxes, machine tools, power centers and bus drop systems. Prevents severe cable bending and pull-out. Helps eliminate direct tension from terminals and remove strain from critical electrical connection. Easy installation. UL&CSA, CE certified.
Product Classification
| Classification | |
| Material Number | 6003063 |
| Part Number | – |
| Status | Active |
| Detail Description | Strain relief grip, dust tight, NPT 3/4″, cable range 0.52-0.73″, with lock nut |
General Specifications
| Details | |
| Cable Range | 0.52-0.73 in | 13.21 -18.54 mm |
| Thread Size | NPT 3/4″ |
| Mesh Length | 6.5 in | 165.1 mm |
| Approx. Break Strength | 450 lbs | 204.1 kg |
| Mesh Material | Galvanized Steel |
| Body Material | Aluminum |
| Performance | |
| Flammability | UL 94HB & UL 94V-2 |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 |
| Package | |
| Packaging Quantity | 1 kit |
| Weight, gross | 0.117 lb | 0.053 kg |
| Certifications | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| UL&CSA | Compliant |
| CE | Compliant |
