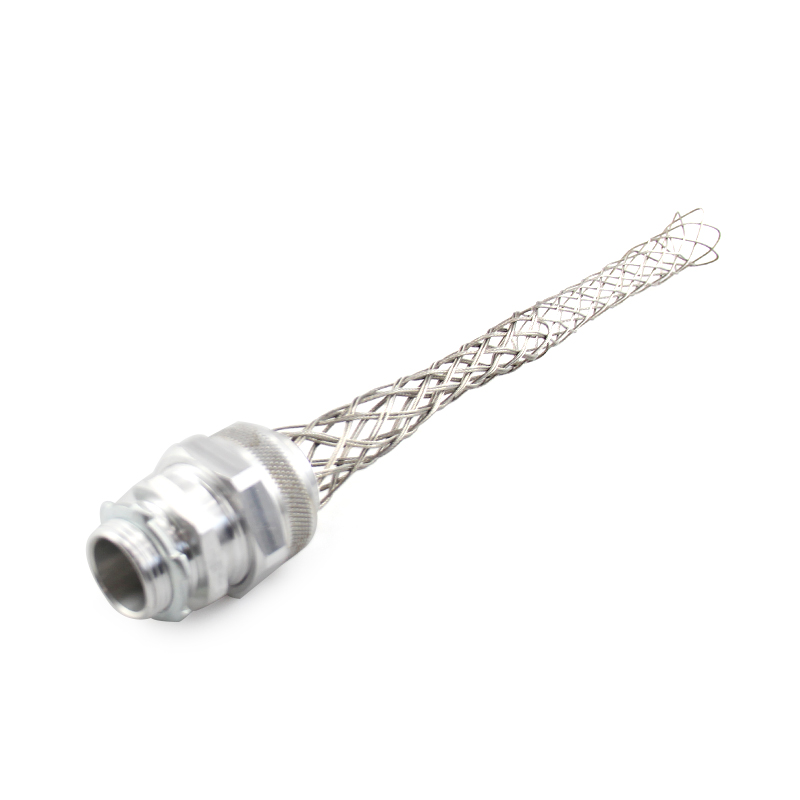

Strain Relief Grip, Deluxe Cord,NPT1/2,Straight Male,Cable Range 0.32-0.43 in，SS304
Item Number 6008651
For indoor and outdoor where cables or wires are exposed to moisture or are frequently washed. Prevents severe cord bending and pull-out. Helps eliminate direct tension from terminals and remove strain from critical electrical connection. Multi-weave provides easy cable installation. UL, CE certified.
Product Classification
| Product Classification | |
| Item Number | 6008651 |
| Part Number | – |
| Detail Description | Strain Relief Grip, Deluxe Cord,NPT1/2,Straight Male,Cable Range 0.32-0.43 in，SS304 |
General Specifications
| Details | |
| Cable Range | 0.32-0.43 in | 8.1-10.9 mm |
| Thread Size | NPT1/2 |
| Mesh Length | 5.5 in | 139.7 mm |
| Approximate Break Strength | 450 lbs | 204 kg |
| Mesh Material | Stainless Steel |
| Ring Material | Aluminum Alloy |
| Performance | |
| Flammability | UL 94HB & UL 94V-2 |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2;
Class II, Div. 1 & 2; and Class III, Div. 1 & 2 |
| Operating Temperatures | -34 °C to +115 °C (-30 °F to +240 °F) |
| Wet Locations | Suitable for use in wet locations when used with
a listed sealing ring between box and fitting |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 0.44 lb | 0.20 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
| UL | Compliant |
