Standard Grounding Kit,for cable 3/8”,0.6m
Item Number 6001522
Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Suitable for screen diameter of cable OD 3/8”. Operation Temperature -40~70 ℃. Waterproof IP68.
Product Classification
| Product Classification | |
| Material Number | 6001522 |
| Status | Active |
| Detail Description | Standard Grounding Kit,for cable 3/8”0.6m,installation accessories including |
General Specifications
| General Specifications | |
| Bonding Conductor Material | Copper |
| Bonding Conductor Wire Size | AWG10 |
| Grounding Strap Material | Copper,Tin Plated |
| Lug Type | One-hole lug |
| Screw Material | Stainless Steel |
| Flat washer Material | Stainless Steel |
| Spring washer Material | Stainless Steel |
| Nut Material | Stainless Steel |
| PVC tape Material | PVC |
| Butyl Rubber Tape Material | Butyl |
| Dimensions | |
| Bonding Conductor Length | 0.6 m |23.6 in |
| Lug Hole Size | M8 |
| Screw Size | 3/8”x1” |
| Electrical Specifications | |
| Contact Transition Resistance | Maximum 10mΩ |
| Packaging and Weights | |
| Height, packed | 180 mm |7.0 in |
| Width, packed | 310 mm |12.2 in |
| Length, packed | 400 mm | 15.75 in |

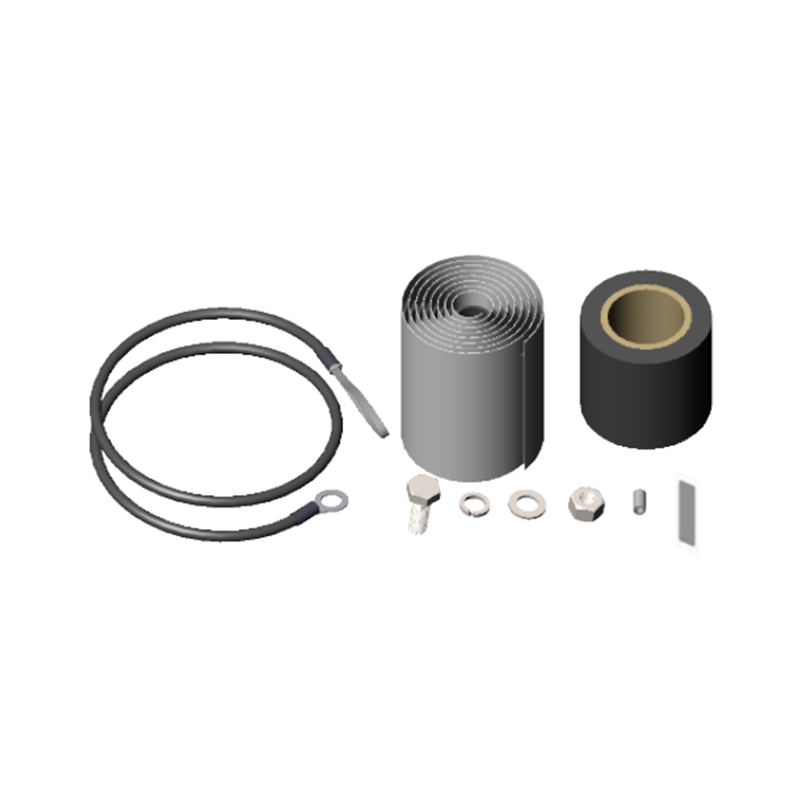

| Included | Grounding kit | 3/8”x1” screw | 3/8” spring washer | 3/8” flat washer |3/8”nut | One roll of 6m PVC tape | One roll of 0.6m butyl rubber Tape |
| UOM | 1 Kit |
| Packaging | Bag |
| Weight, gross | 0.262 kg | 0.577 lb |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
