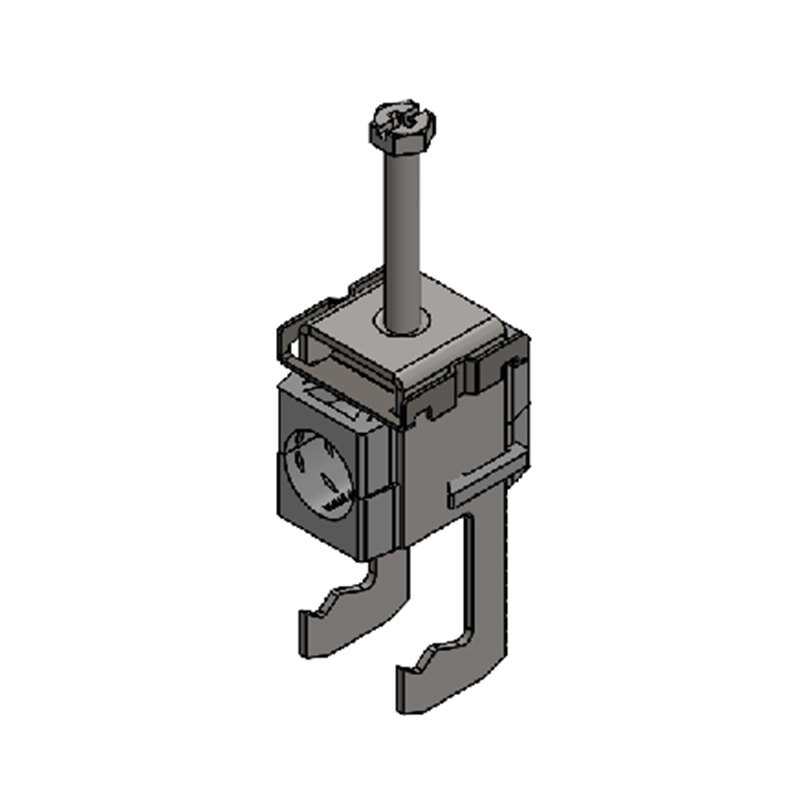

Hook Cable Clamp, M Type, 1×1/2”

Item Number 6005033

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Hooking on round ø 8-25 and flat 3-25 mm.

Add to List Download Datasheet

Product Classification
Item Number	6005033
Part Number	–
Detail Description	Hook Cable Clamp for 1×1/2” cable, hooking on round ø 8-25 and flat 3-25 mm

General Specifications
Metal Material	Stainless steel 304
Block Material	PA6
Block Color	Black
Cables Per Hanger	1 X 1/2 in
Dimensions
Height	103.0 mm \| 4.06 in
Width	30.4 mm \| 1.20 in
Length	41.5 mm \| 1.63 in
Compatible Cable Jacket OD, maximum	17.0 mm \| 0.67 in
Compatible Cable Jacket OD, minimum	15.0 mm \| 0.59 in
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Corrosion Resistance	≥96 hours in salt spray chamber, base on ISO 9227:2017
UV Resistance	≥720 hours, base on ISO4892.3-1994
Vibration Test	≥6Hours,base on IEC 60068-2-6-2007
Packaging and Weights
Height, Packed	140 mm \| 5.51 in
Width, Packed	200 mm \| 7.87 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.075 kg \| 0.165 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
