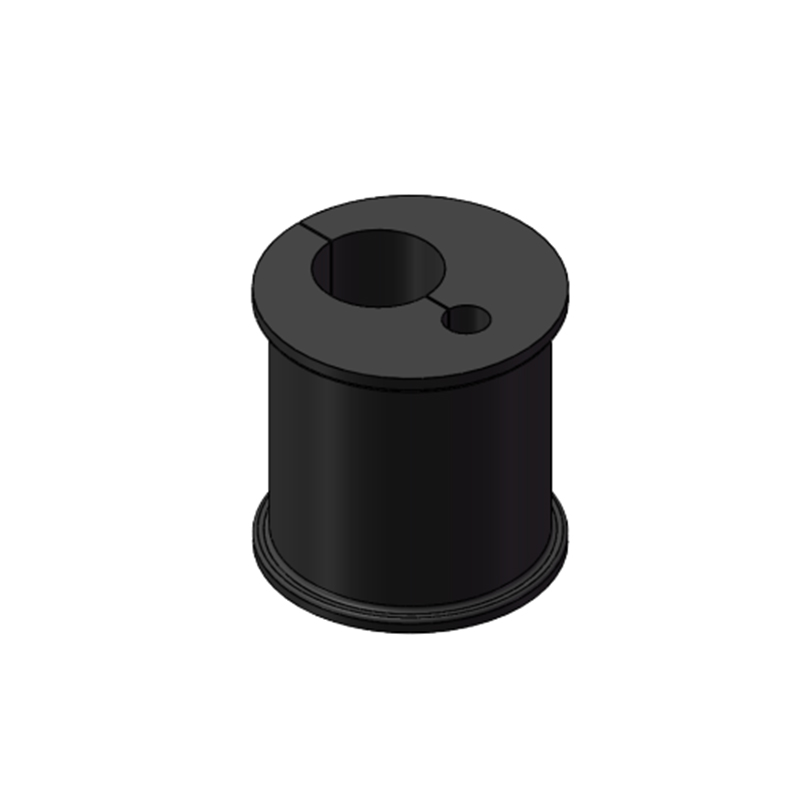

Rubber Insert, Double Hole, 1-5/8″ To 9+24mm, EPDM
Item Number 6008589
Easy and quick installation. Material for outdoor / indoor use.
Product Classification
Product Classification | |
Item Number | 6008589 |
Part Number | – |
Detail Description | Rubber insert, double hole, 1-5/8” to 9mm and 24mm, EPDM |
General Specifications
General Specifications | |
Block Material | EPDM |
Color | Black |
Mounting | 1-5/8 in cable block hanger or 1-5/8 in snap-in |
Dimensions | |
Height | 55.6 mm | 2.19 in |
Length | 54.0 mm | 2.13 in |
Compatible Cable Jacket OD, maximum | 24.0 mm | 0.94 in |
Compatible Cable Jacket OD, minimum | 9.0 mm | 0.35 in |
Environmental Specifications | |
Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
UV Resistance | ≥720 hours, base on ISO4892.3-1994 |
Packaging and Weights | |
Height, Packed | 320 mm | 12.60 in |
Width, Packed | 220 mm | 8.66 in |
UOM | Kit of 10 |
Packaging | Bag |
Weight, Gross | 1.085 kg | 2.39 lb |
Certifications and Compliance | |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
RoHS | Compliant |
