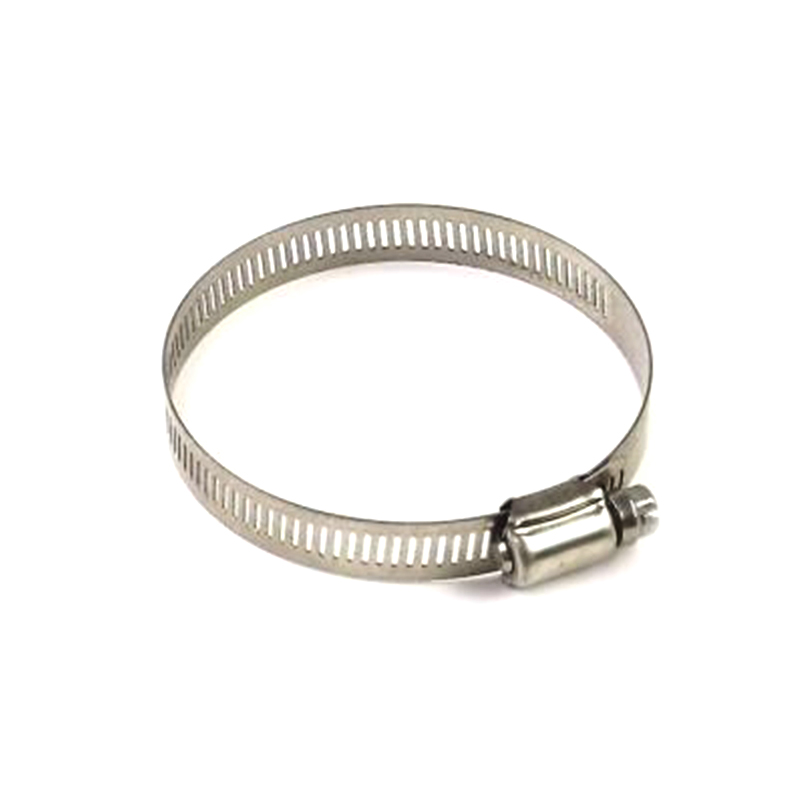

Round member adapter, stainless steel passivation, for 105-178mm round member

Item Number 6006745

Wider operating range. For attaching to round members. Used indoor or outdoor.

ISORoHS

Product Classification

Product Classification
Material Number 6006745
Part Number -
Status Active
Detail Description Round member adapter, stainless steel 304 passivation, for 105-178mm round member

General Specifications

General Specifications
Material Stainless steel 304
Surface Treatment Passivation and sealing
Dimensions
Band Width 12.5 mm | 0.492 in
Band Thickness 0.6 mm | 0.024 in
Screw Type Slotted Hex Head
Hex Head Size 7.9 mm | 5/16 in
Size Range 105-178 mm
Mechanical Specifications
Installation Torque 4.0-5.1 N.m | 35-45 in.lbs
Minimum Destructive Torque Min 6.8 N.m | Min 60 in.lbs
Environmental Specifications
Salt Spray ASTM B117, 720 hours
Packaging and Weights
Bag Width, packed 450 mm | 17.71 in
Bag Length, packed 300 mm | 11.81 in
Packaging Quantity and UOM Kit of 10
Weight, gross 0.49 kg | 1.08 lb
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Additional Documentation and Resources
