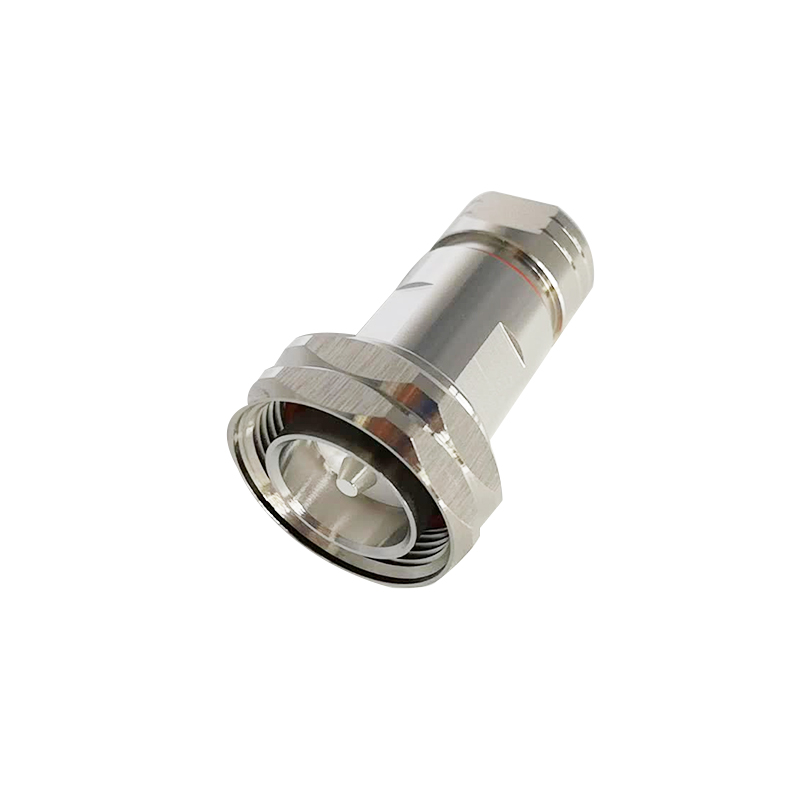

RF coaxial connector, 7/16 DIN screw type male for 1/2” superflexible cable

Item Number 6004237

Excellent low PIM performance. Threaded coupling mechanism ensures secure mating. RoHS certified.

ISORoHS

Product Classification

Product Classification
Material Code 6004237
Part Number -
Status Active
Detail Description RF coaxial connector, 7/16 DIN screw type male for 1/2” superflexible cable

General Specifications

General Specifications
Connector Type 7/16 DIN male screw type
Body Material Brass
Body Surface Treatment Copper-Tin-Zinc plating
Insulator Material PTFE
Center Conductor Material Phosphor bronze
Center Conductor Surface Treatment Ag plating
Suitable Cable Type 1/2” Superflexible Cable
Dimensions
Length 47.7 mm
Electrical Specifications
Characteristic Impedance 50 ohm
Frequency Range DC-3GHz
VSWR (DC-3GHz) ≤ 1.08
PIM (@2-tone X 20w) ≤ -160 dBc
Dielectric Withstanding Voltage ≥ 4000V RMS, 50Hz, at sea level
Dielectric Resistance ≥ 10000 MΩ
Contact Resistance Inner contact ≤ 0.4 mΩ Outer contact ≤ 0.2 mΩ
Durability Mating cycles ≥ 500 cycles
Environmental Specifications
Operating Temperature -40 °C to +85 °C
Packaging and Weights
Height, packed 70mm | 2.75 in
Width, packed 40 mm | 1.57 in
Length, packed 40 mm | 1.57 in
Packaging Quantity and UOM 1 Pcs
Weight, gross 0.13 kg | 0.28 lb
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
