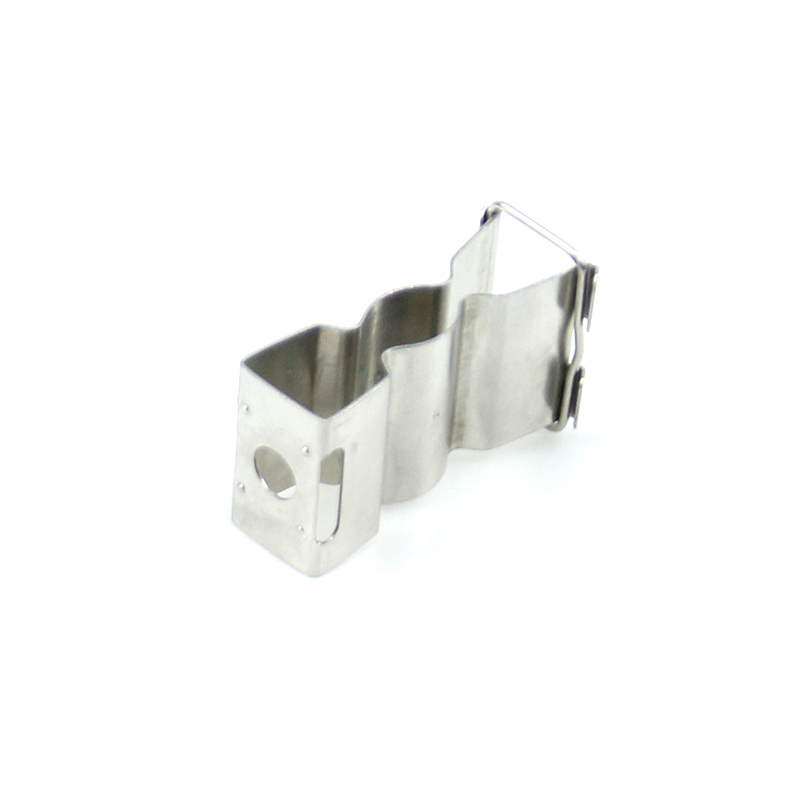

Radiating Clip, 1/2″ , Mounting Hole φ10mm, SS304
Item Number 6009105
Easy and quick installation, just clip the bail, no nuts or bolts. Robust design & material for outdoor / indoor use. Fits M10 hardware kits, banding, round member adapters, angle adapters or standoff kits.
Product Classification
| Product Classification | |
| Item Number | 6009105 |
| Part Number | – |
| Detail Description | Radiating clip, for 1/2″ cable , mounting hole φ10mm, SS304 |
General Specifications
| General Specifications | |
| Material | Stainless Steel |
| Color | Silver |
| Cable Type | Coaxial Foam Dielectric | Radiating Cable | Hybrid Cable |
| Cable Size | 1/2” |
| Dimensions | |
| Height | 55 mm | 2.17 in |
| Width | 30 mm | 1.81 in |
| Mounting Hole | 10 mm | 0.39 in |
| Compatible Jacket OD, maximum | 17 mm | 0.67 in |
| Compatible Jacket OD, minimum | 15 mm | 0.59 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Salt Spray | ≥72 hours, base on IEC 60068 -2-11 |
| Packaging and Weights | |
| Height, Packed | 320 mm | 12.60 in |
| Width, Packed | 220 mm | 8.66 in |
| UOM | Pcs |
| Packaging | Bag |
| Weight, Gross | 0.020 kg | 0.044 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
