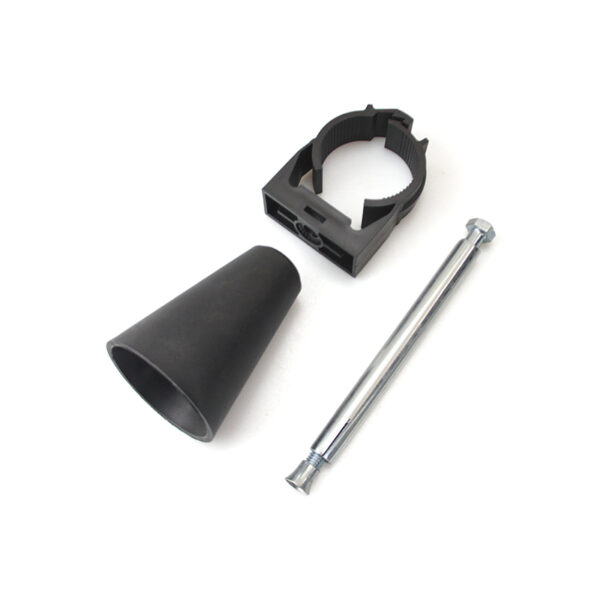

Radiating Clamp Kit, for 1-5/8 in cable

Item Number 6003774

Easy and quick installation. Robust design & material for outdoor / indoor use. Fixed wall distance 80 mm. Operation Temperature -40~85 ℃.

Add to List Download Datasheet

Product Classification
Material Code	6003774
Part Number	–
Status	Active
Detail Description	Radiating Clamp for 1-5/8 in radiating cable

General Specifications
Accessories	Clamp & 80mm base & M8x140 screw & M8x120 expansion pipe & M8 expansion nut
Cables per hanger	1
Color	Black
Material Specifications
Clamp	Polyamide PA6 Low Smoke Zero Halogen
Base	Polypropylene PP
Screw	Q235 Galvanization
Expansion Pipe	Q235 Galvanization
Expansion Nut	Q235 Galvanization
Dimensions
Nominal Size	1-5/8 in
Hanger Spacing,maximum	1.0 m \| 3.28 ft
Environmental Specifications
UV Resistance	1000 hours, base on ISO 4892-3 -1994
Packaging and Weights
Height, packed	180 mm \| 7.0 in
Width, packed	310 mm \| 12.2in
Length, packed	400 mm \| 15.75 in
Packaging Quantity and UOM	1 Kit
Weight, gross	0.2 kg \| 0.44 lb
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
