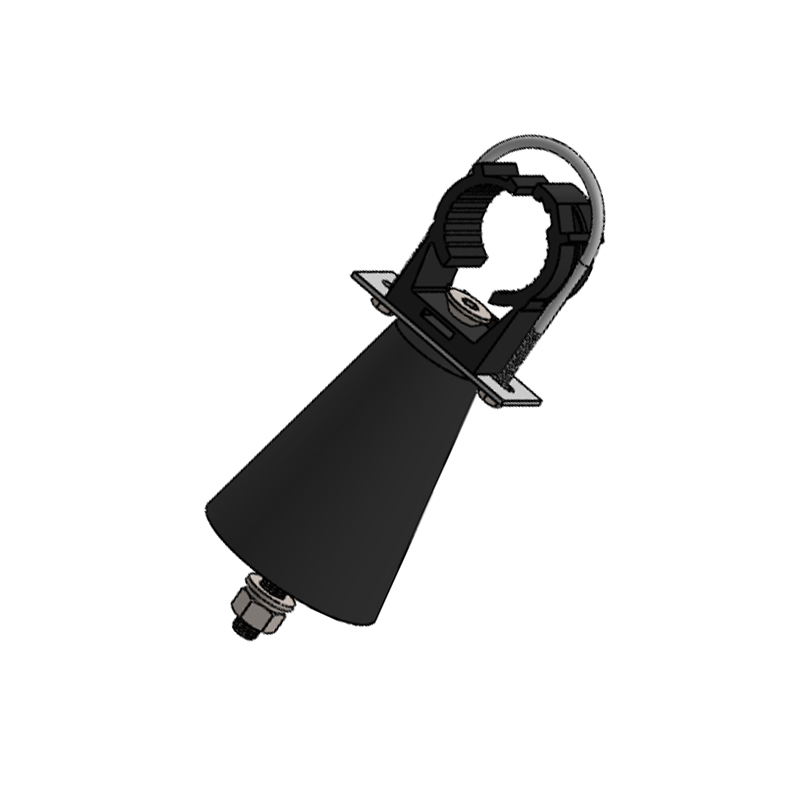

Radiating Cable Clamp, 7/8″ , With M8x120mm Screw and And U-Bolt

Item Number 6009627

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Fixed wall distance 80 mm.

Add to List Download Datasheet

Product Classification
Item Number	6009627
Part Number	–
Detail Description	Radiating cable clamp, for 7/8” radiating cable, with M8x20mm screw and U-Bolt

General Specifications
Block Material	PA6
Block Color	Black
Round Base Material	PA6
Base Color	Black
U-Bolt Material	Stainless Steel 316
Hardware Material	Stainless Steel 316
Cable Size	7/8”
Dimensions
Round Base Height	80.0 mm \| 3.15 in
Round Base Diameter	59.0 mm \| 2.32 in
Screw Size	M8x120 mm
Compatible Cable Jacket OD, maximum	29.0 mm \| 1.14 in
Compatible Cable Jacket OD, minimum	27.0 mm \| 1.06 in
Hanger Spacing, maximum	10.0 m \| 33.0 feet
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Flammability	UL94 V-0
Packaging and Weights
Height, Packed	200 mm \| 7.87 in
Width, Packed	200 mm \| 7.87 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.148 kg \| 0.327 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
