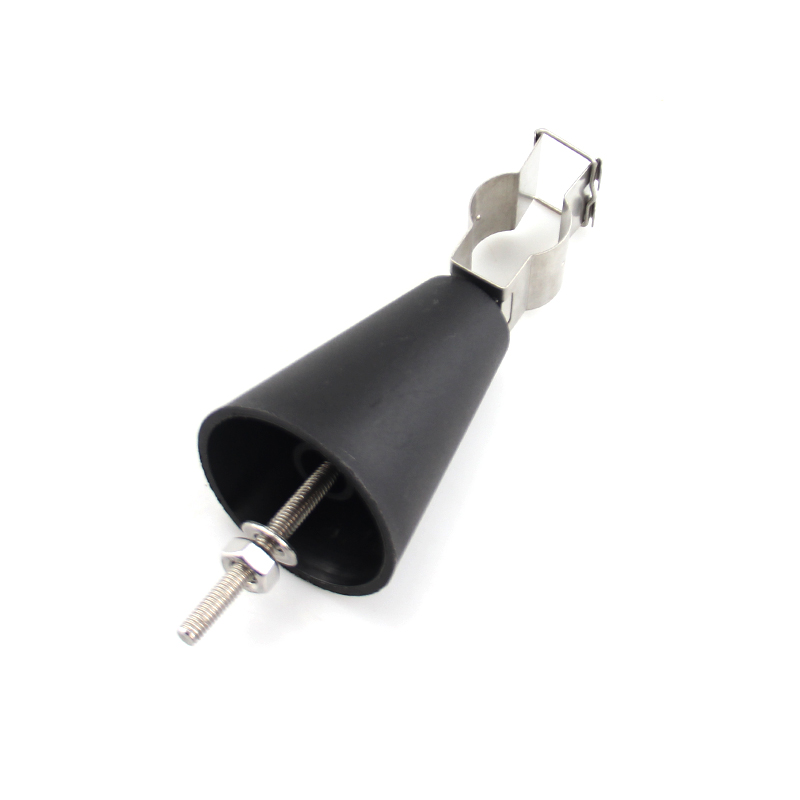

Radiating Clamp Kit, 7/8″, With M8 Locknut

Item Number 6008822

Easy and quick installation. Robust design & material for outdoor / indoor use. Fixed wall distance 80 mm. Operation Temperature -40~85 ℃.

Add to List Download Datasheet

Product Classification
Item Number	6008822
Part Number	–
Detail Description	Radiating clamp for 7/8” radiating cable, with M8 locknut

General Specifications
Block Material	Stainless Steel 304
Round Base Material	PA6
Base Color	Black
Hardware Material	Stainless Steel 304
Cable Size	7/8”
Dimensions
Round Base Height	80.0 mm \| 3.15 in
Round Base Diameter	59.0 mm \| 2.32 in
Bolt Size	M8x100 mm
Compatible Cable Jacket OD, maximum	29.0 mm \| 1.14 in
Compatible Cable Jacket OD, minimum	27.0 mm \| 1.06 in
Hanger Spacing, maximum	10.0 m \| 33 ft
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Flammability	UL94 V-0
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.118 kg \| 0.260 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
