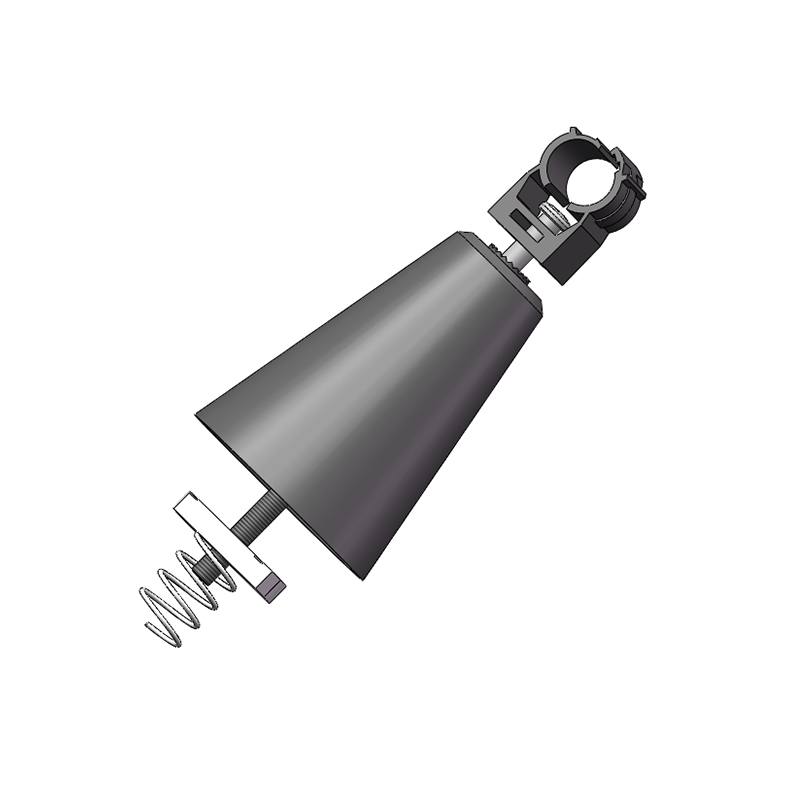

Radiating Clamp Kit, 1/2″, With M6 Spring Nut

Item Number 6002956

Easy and quick installation. Robust design & material for outdoor / indoor use. Fixed wall distance 80 mm. Operation Temperature -40~85 ℃.

Add to List Download Datasheet

Product Classification
Item Number	6002956
Part Number	–
Detail Description	Radiating clamp for 1/2 in radiating cable, with M6 spring nut

General Specifications
Clamp Material	PA6, Low Smoke Zero Halogen
Base Material	PA6, Low Smoke Zero Halogen
Clamp & Base Color	Black
Screw Material	Stainless steel 316
Spring Nut Material	Stainless steel 316
Cables Per Hanger	1 X 1/2”
Dimensions
Normal Size	1/2 in
Base Height	80.0 mm \| 3.15 in
Screw Size	M6 X 125 mm
Spring Nut Size	M6
Hanger Spacing, maximum	1.0 m \| 3.28 ft
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
Flammability	UL94 V-0
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	450 mm \| 17.71 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.098 kg \| 0.216 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
