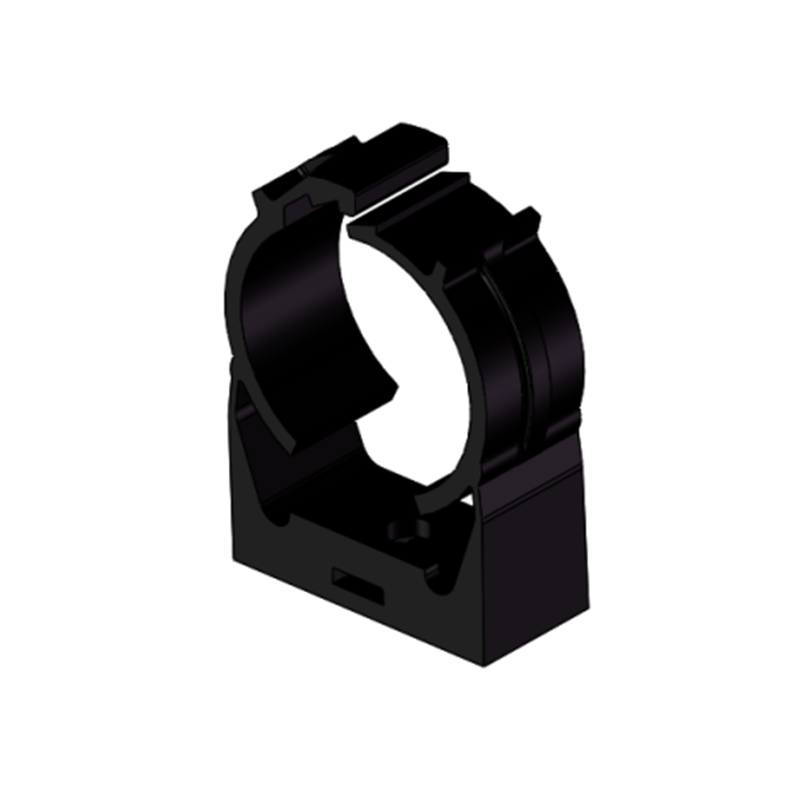

Radiating Clamp, 7/8″, PA6

Item Number 6004908

Easy and quick installation. Robust design & material for outdoor / indoor use. Operation Temperature -40~85 ℃.

ISORoHS

Product Classification

Product Classification
Item Number 6004908
Part Number
Detail Description Radiating Clamp, for 7/8 in radiating cable

General Specifications

General Specifications
Material PA6, low smoke zero halogen
Color Black
Mounting Hole 8.5 mm
Dimensions
Height 54.5 mm | 2.15 in
Width 25.0 mm | 0.98 in
Length 36.0 mm | 1.42 in
Compatible Cable Jacket OD, maximum 28.0 mm | 1.10 in
Compatible Cable Jacket OD, minimum 26.0 mm | 1.02 in
Normal Size 7/8 in
Environmental Specifications
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Flammability UL94 HB
Packaging and Weights
Height, Packed 320 mm | 12.598 in
Width, Packed 220 mm | 8.661 in
UOM 1 Pcs
Packaging Bag
Weight, Gross 0.016 kg | 0.035 lb
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant

Additional Documentation and Resources
