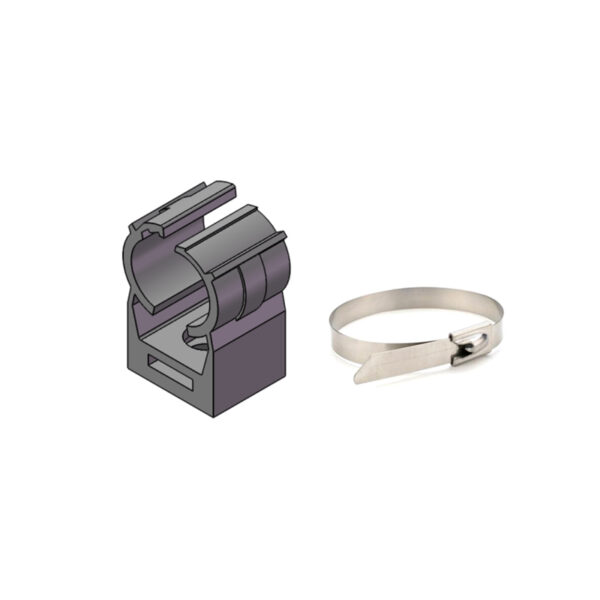

Radiating Clamp, 1/2″, PA6, With Stainless Steel Cable Tie

Item Number 6003149

Easy and quick installation. Robust design & material for outdoor / indoor use. Operation Temperature -40~85 ℃.

ISORoHS

Product Classification

Product Classification
Item Number 6003149
Part Number
Detail Description Radiating clamp for 1/2 in radiating cable, with stainless steel cable tie

General Specifications

General Specifications
Clamp Material PA6, Low Smoke Zero Halogen
Clamp Color Black
Cables Per Hanger 1 X 1/2”
Cable Tie Material Stainless steel 304
Dimensions
Clamp Height 31.2 mm | 1.23 in
Clamp Width 17.5 mm | 0.69 in
Clamp Length 20.8 mm | 0.82 in
Normal Size 1/2 in
Cable Tie Size 4.6 X 200 mm
Hanger Spacing, maximum 1.0 m | 3.28 ft
Environmental Specifications
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Flammability UL94 V-0
Packaging and Weights
Height, Packed 320 mm | 12.598 in
Width, Packed 220 mm | 8.661 in
UOM 1 Pcs
Packaging Bag
Weight, Gross 0.0069 kg | 0.015 lbs
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant

Additional Documentation and Resources
