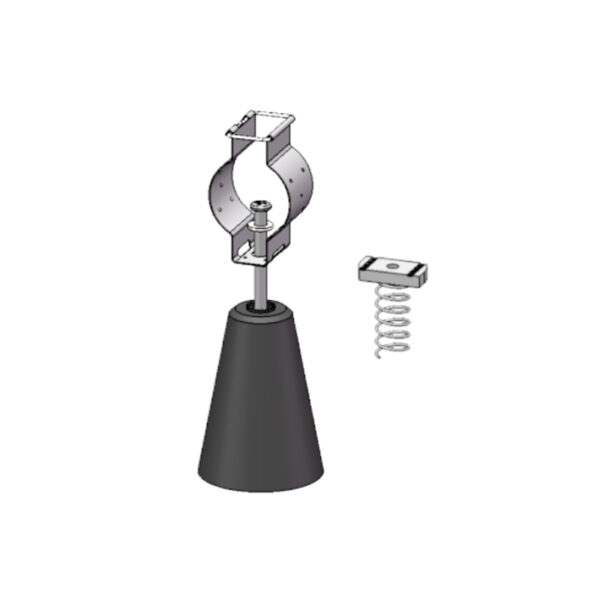

Radiating Cable Clamp, 1-1/4″, With M6 Spring Nut
Item Number 6008541
Easy and quick installation. Robust design & material for outdoor / indoor use. Fixed wall distance 80 mm.
Product Classification
| Product Classification | |
| Item Number | 6008541 |
| Part Number | – |
| Detail Description | Radiating cable clamp, for 1-1/4″ cable, with M6 spring nut |
General Specifications
| General Specifications | |
| Metal Material | Stainless steel 304 |
| Base Material | PA6, low smoke zero halogen |
| Color | Natural & Black |
| Dimensions | |
| Compatible Cable Jacket OD, maximum | 16.0 mm | 0.63 in |
| Compatible Cable Jacket OD, minimum | 14.0 mm | 0.55 in |
| Normal Size | 1-1/4 in |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Flammability | UL94 V-0 |
| UV Resistance | ≥720 hours, base on ISO4892.3-1994 |
| Corrosion Resistance | ≥168 hours in salt spray chamber, base on IEC 60068-2-11 |
| Vibration Survival Test | ≥6 hours at resonant frequency, base on IEC 60068-2-6 |
| Packaging and Weights | |
| Height, Packed | 300 mm | 11.81 in |
| Width, Packed | 500 mm | 19.69 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.1 kg | 0.22 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
