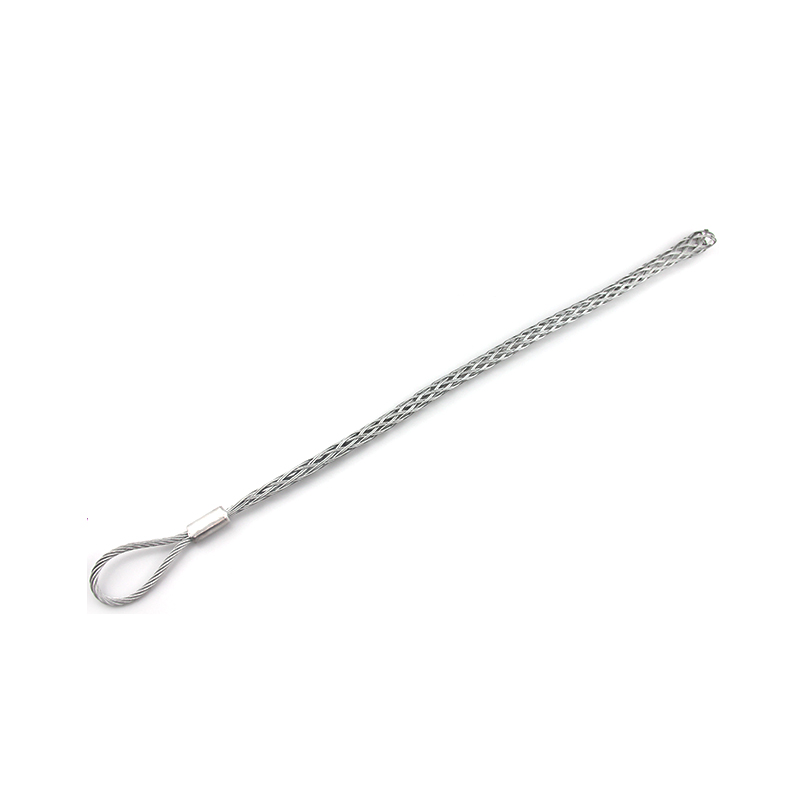

Pulling Grip, Light Duty, Single Eye For 20-25 mm Cable,Galvanized Steel
Item Number 6009111
Used in industrial plants, commercial buildings, utility work and light duty underground transmission line stringing. Convenient, high strength pulling tool. Easily attach to a swivel. Easily installed and removed. CE certified.
Product Classification
| Product Classification | |
| Item Number | 6009111 |
| Part Number | – |
| Detail Description | Pulling Grip, Light Duty, Single Eye For 20-25mm Cable Galvanized Steel |
General Specifications
| Details | |
| Cable Range | 0.79-0.98 in | 20-25 mm |
| Mesh Length | 27.5 in | 700.0 mm |
| Eye Length | 3.9 in | 100.0 mm |
| Approximate Break Strength | 3527 lbs | 1600 kg |
| Working Load | 705 lbs | 320 kg (Safety Factor 5*) |
| Mesh Material | Galvanized Steel |
| Packaging and Weights | |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 0.29 lb | 0.13 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
