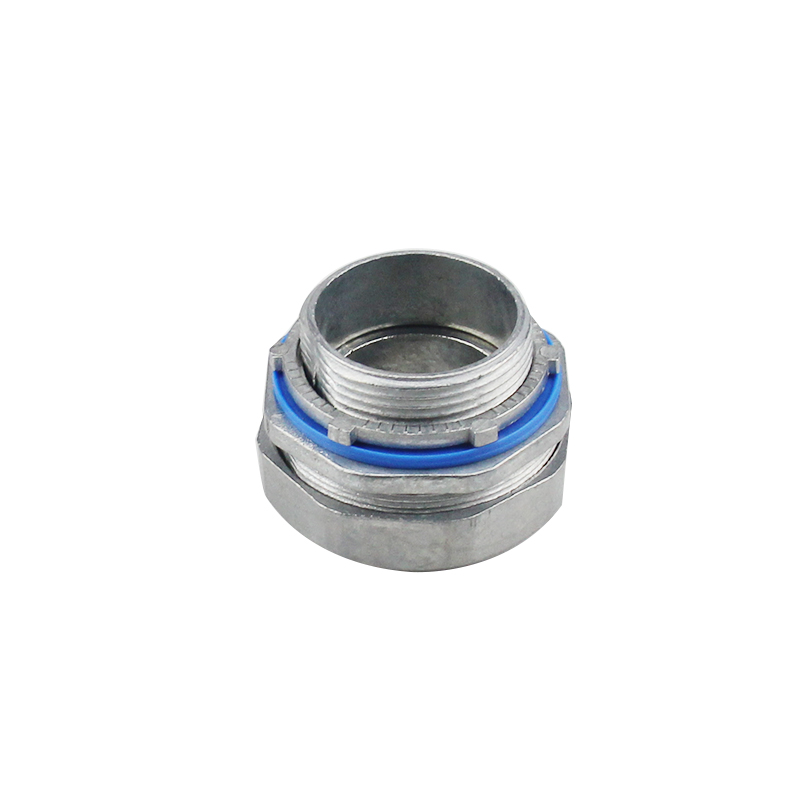

Liquid tight Conduit Connector, NPT 1-1/2″, Straight Male
Item Number 6009278
For use in outdoor or indoor locations on flexible metallic liquid tight conduit and flexible nonmetallic liquid tight conduit to positively bond the conduit to a box or enclosure. Liquid tight, rain tight, oil tight for protection and long life in wet, dusty environments. Suitable for wet location use. Insulated throat protects conductors from abrasion damage. CE certified.
Product Classification
| Product Classification | |
| Item Number | 6009278 |
| Part Number | – |
| Detail Description | Liquid tight Conduit Connector, NPT 1-1/2″, Straight Male |
General Specifications
| General Specifications | |
| Trade Size | NPT1-1/2″ |
| Body Material | Zinc Plated Malleable Iron |
| Compression Nut Material | Zinc plated steel |
| Non-metallic Material | Nylon |

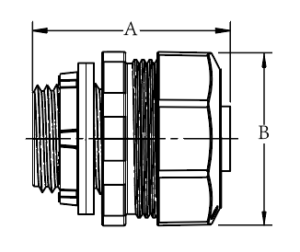

| Dimensions
|
|
| Dimension A | 1.98 in |50.5 mm |
| Dimension B | 2.59 in | 66.0 mm |
| Performance | |
| Hazardous Locations | Suitable for use in hazardous locations per Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 |
| Package | |
| UOM | 1 pcs |
| Packaging | Carton |
| Weight, gross | 0.44 lb | 0.2 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| CE | Compliant |
