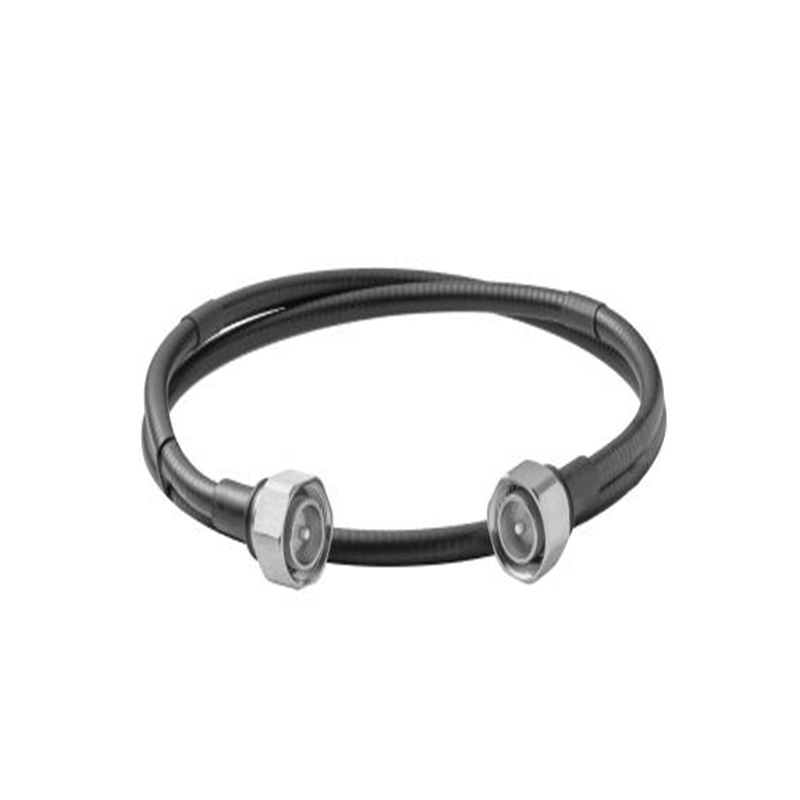

Jumper cable, 1/2” superflexible cable, 4.3-10 male to 4.3-10 male, 10 meter
Item Number 6006754
Stable premium VSWR, outstanding and consistent intermodulation performance. Improves network performance, reduces the number of dropped calls and avoids revenue loss. RoHS certified.
Product Classification
| Product Classification | |
| Material Code | 6006754 |
| Part Number | - |
| Status | Active |
| Detail Description | Jumper cable, 1/2” superflexible cable, 4.3-10 male to 4.3-10 DIN male, 10 meter |
General Specifications
| General Specifications | |
| Connector 1 Type | 4.3-10 male |
| Connector 2 Type | 4.3-10 male |
| Cable Type | 1/2” Superflexible Cable |
| Dimensions | |
| Length | 10 Meter |
| Electrical Specifications | |
| Characteristic Impedance | 50 ohm |
| Frequency Range | DC-3GHz |
| VSWR | ≤1.15(DC-3GHz) |
| PIM3 | ≤-160dBc |
| Mating Cycles | ≥500 |
| Environmental Specifications | |
| Installation Temperature | -25 °C to +60 °C |
| Operating Temperature | -40 °C to +85 °C |
| Waterproof | IEC 60529, IP68 |
| Packaging and Weights | |
| Height, packed | 100 mm | 3.93 in |
| Width, packed | 500 mm | 19.68 in |
| Length, packed | 500 mm | 19.68 in |
| Packaging Quantity and UOM | 1 Pcs |
| Weight, gross | 2.51 kg | 5.53 lb |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
