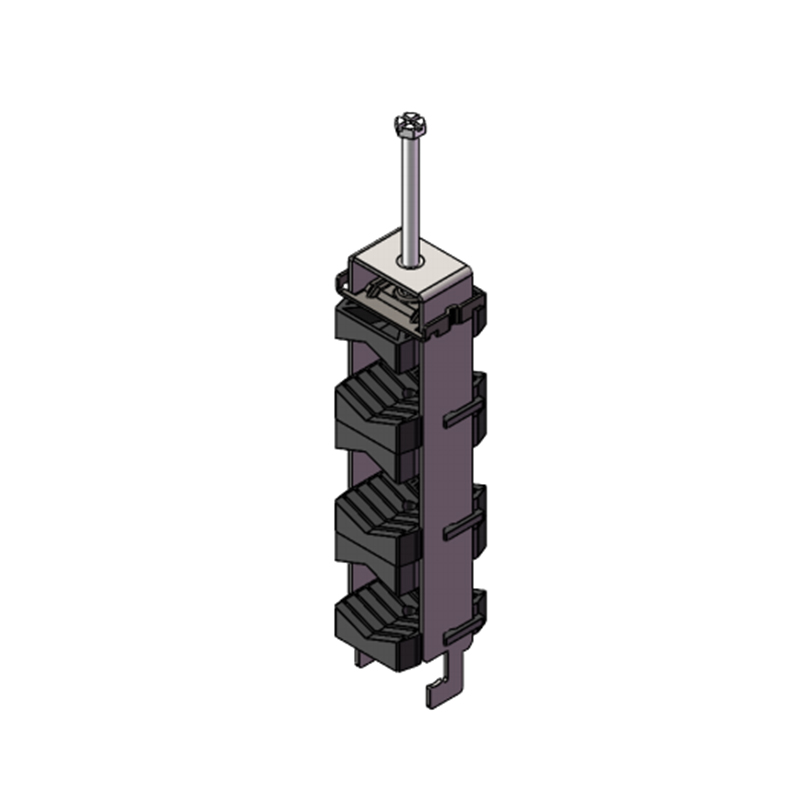

Hook Cable Clamp, E Type, 3 holes, 3×14-32mm
Item Number 6009468
Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Hooking on section 40×22mm, flat and round 3-12 mm.
Product Classification
| Product Classification | |
| Item Number | 6009468 |
| Part Number | – |
| Detail Description | Hook cable clamp, for 3×14-32mm OD cable, hooking on section 40×22, round ø3-12 and flat 3-12 mm |
General Specifications
| General Specifications | |
| Metal Material | Stainless Steel 304 |
| Block Material | PA6 |
| Block Color | Black |
| Cables Per Hanger | 3 |
| Dimensions | |
| Height | 330.0 mm | 12.99 in |
| Width | 45.0 mm | 1.77 in |
| Length | 44.5 mm | 1.75 in |
| Compatible Cable OD, maximum | 32.0 mm | 1.26 in |
| Compatible Cable OD, minimum | 14.0 mm | 0.55 in |
| Environmental Specifications | |
| Operating Temperature | -40°C to +85°C(-40°F to+185°F) |
| Environmental Strength Capability | Double Cable Weight |
| UV Resistance | ≥720 Hours, base on ISO4892.3-1994 |
| Vibration Test | ≥6 Hours,base on IEC 60068-2-6-2007 |
| Packaging and Weights | |
| Height, Packed | 300 mm | 11.81 in |
| Width, Packed | 150 mm | 5.91 in |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.240 kg | 0.529 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
