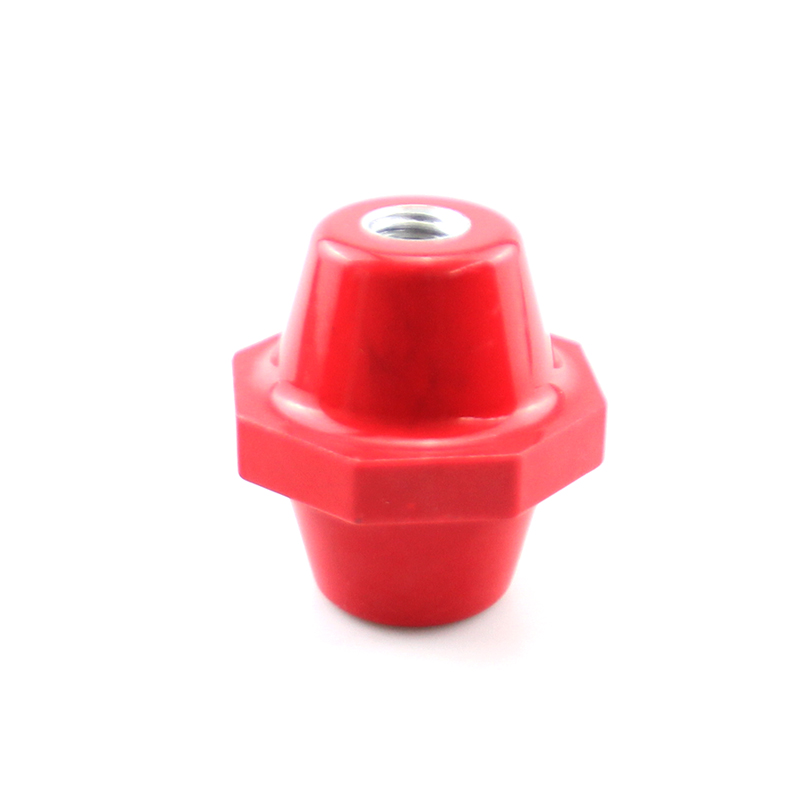

Hexagonal Insulators, with 5/8” insert

Item Number 6005721

Robust design & material for outdoor use. Used for electrical applications. Operation Temperature -20~140 ℃. RoHS certified.

ISORoHS

Product Classification

Product Classification
Material Number 6005721
Part Number -
Status Active
Detail Description Hexagonal Buss Bar Insulators, with 5/8” alumimum insert

General Specifications

General Specifications
Body Material DMC
Insert Material Aluminum
Mounting Screw Depth 20 mm | 0.787 in
Mounting Screw Size 5/8”-18UNC
Dimensions
Height 70 mm | 0.787 in
Opposite Side Dimension 63.5 mm | 2.5 in
Environmental Specifications
Operating Temperature -20 °C to +140 °C
Electrical Specifications
Voltage Withstand 3 KV
Tensile Strength 3500 N | 800 Lbs
Thread Torque 30 N.m
Packaging and Weights
Height, packed 320 mm | 12.59 in
Width, packed 220 mm | 8.66 in
UOM Pcs
Packaging Bag
Weight, gross 0.229 kg |0.504 lb
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant

Additional Documentation and Resources
