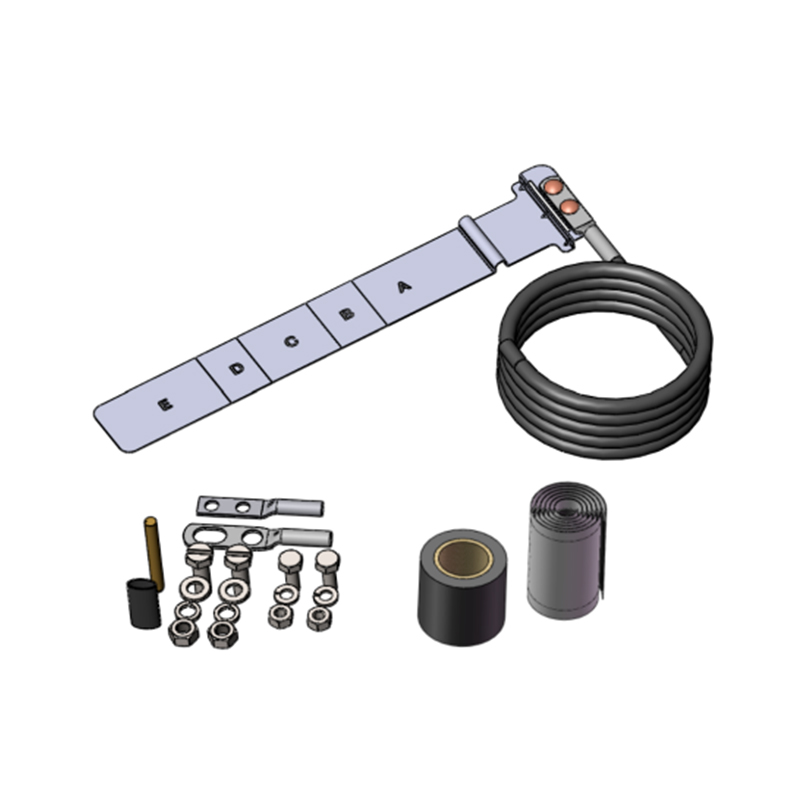

Grounding Kit, Tinned Universal Type, 1/2″-3″, 1.5 Meter, 3 Set

Item Number 6003973

Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Operation Temperature -40℃~70 ℃. Waterproof IP68.

Add to List Download Datasheet

Product Classification
Item Number	6003973
Part Number	–
Detail Description	Grounding kit, tinned universal type, for 1/2″-3″ cable, 1.5 meter, 3 Set, installation accessories including

General Specifications
Bonding Conductor Material	Copper
Bonding Conductor Wire Size	AWG 6
Grounding Strap Material	Copper, Tin Plated
Lug Type	Two-hole lug
Screw Material	Stainless Steel
Flat washer Material	Stainless Steel
Spring washer Material	Stainless Steel
Nut Material	Stainless Steel
PVC tape Material	PVC
Butyl Rubber Tape Material	Butyl
Dimensions
Bonding Conductor Length	1.5 m \| 5 feet
Lug Hole Size	3/8”
Screw Size	3/8”x1”
Suitable Cable	1/2”-3”
Environmental Specifications
Operating Temperature	-40°C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method	Butyl and electric tape
Electrical Specifications
Contact Transition Resistance	Maximum 10mΩ
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
Included	Grounding kit \| Hardware \| Lug \| One roll of PVC tape \| One roll of butyl rubber tape
UOM	Pcs
Packaging	Bag
Weight, Gross	1.805 kg \| 3.979 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
