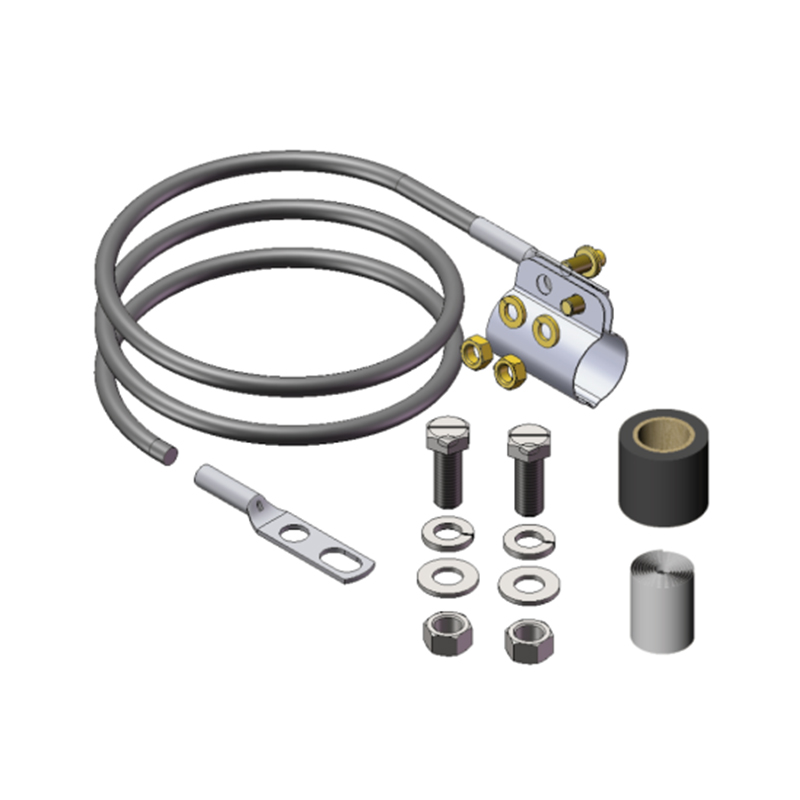

Grounding Kit, Tinned GST Type, 7/8″, 1.5 Meter

Item Number 6005778

Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Operation Temperature -40~70 ℃. Waterproof IP67.

ISORoHS

Product Classification

Product Classification
Item Number 6005778
Part Number
Detail Description Grounding Kit, tinned GST type, for 7/8″ cable, 1.5 meter, installation accessories including

General Specifications

General Specifications
Bonding Conductor Material Copper, Tin Plated
Bonding Conductor Wire Size AWG 6
Grounding Strap Material Copper, Tin Plated
Lug Type Two-hole lug
Screw Material Stainless Steel
Flat washer Material Stainless Steel
Spring washer Material Stainless Steel
Nut Material Stainless Steel
PVC tape Material PVC
Butyl Rubber Tape Material Butyl
Dimensions
Bonding Conductor Length 1.5 m | 5 feet
Lug Hole Size 3/8”
Screw Size 3/8”x1”
Suitable Cable 7/8”
Environmental Specifications
Operating Temperature -40°C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method Butyl and electric tape
Electrical Specifications
Contact Transition Resistance Maximum 10mΩ
Packaging and Weights
Height, Packed 320 mm | 12.60 in
Width, Packed 220 mm | 8.66 in
Included Grounding kit | Hardware | Lug | One roll of PVC tape | One roll of butyl rubber tape
UOM Kit
Packaging Bag
Weight, Gross 0.668 kg | 1.472 lbs
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
