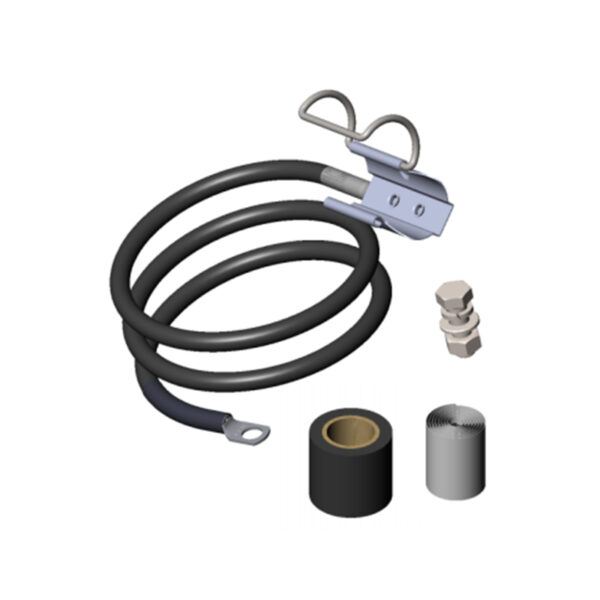

Grounding Kit, Tinned Clip-on Type, 7/8”, 0.6 Meter

Item Number 6003030

Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Operation temperature -40~70 ℃. Waterproof IP68.

ISORoHS

Product Classification

Product Classification
Item Number 6003030
Part Number
Detail Description Grounding kit, tinned clip-on type, for 7/8” cable, cable length 0.6m, installation accessories included

General Specifications

General Specifications
Bonding Conductor Material Copper
Bonding Conductor Wire Size 6 AWG
Grounding Strap Material Copper, Tin plated
Lug Type One-hole lug
Screw Material Stainless Steel
Flat washer Material Stainless Steel
Spring washer Material Stainless Steel
Nut Material Stainless Steel
Tape Material PVC & Butyl
Dimensions
Bonding Conductor Length 0.6 m | 2 feet
Lug Hole Size 8.4 mm | 0.33 in
Screw Size M8 X 25 mm
Suitable Cable 7/8”
Environmental Specifications
Operating Temperature -40°C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method Butyl and electric tape
Electrical Specifications
Contact Transition Resistance Maximum 10mΩ
Packaging and Weights
Height, Packed 320 mm | 12.60 in
Width, Packed 220 mm | 8.66 in
Included Grounding kit | Hardware | Lug | One roll of PVC tape | One roll of butyl rubber tape
UOM Kit
Packaging Bag
Weight, Gross 0.37 kg | 0.82 lbs
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
