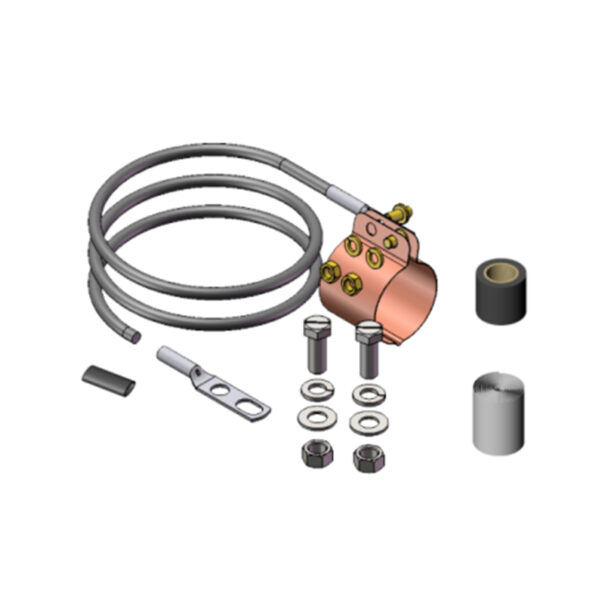

Grounding Kit, Clip-on Type, 7/8”, 1.5 Meter, With Two 3/8″ Hole Lug

Item Number 6008836

Easy and quick installation. Low contact transition resistance of maximum 10mΩ. Operation temperature -40~70 ℃. Waterproof IP68.

Add to List Download Datasheet

Product Classification
Item Number	6008836
Part Number	–
Detail Description	Grounding kit, clip-on type, for 7/8” cable, cable length 1.5m, installation accessories and installation guide included

General Specifications
Bonding Conductor Material	Copper
Bonding Conductor Wire Size	6 AWG
Grounding Strap Material	Copper
Lug Type	Two-hole lug
Screw Material	Stainless Steel
Flat washer Material	Stainless Steel
Spring washer Material	Stainless Steel
Nut Material	Stainless Steel
Tape Material	PVC & Butyl
Dimensions
Bonding Conductor Length	1.5 m \| 5 feet
Lug Hole Size	3/8”
Screw Size	3/8”x1”
Suitable Cable	7/8”
Environmental Specifications
Operating Temperature	-40°C to +70 °C (-40 °F to +158 °F)
Weatherproofing Method	Butyl and electric tape
Electrical Specifications
Contact Transition Resistance	Maximum 10mΩ
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
Included	Grounding kit \| Hardware \| Lug \| One roll of PVC tape \| One roll of butyl rubber tape \| One installation guide
UOM	Kit
Packaging	Bag
Weight, Gross	0.535 kg \| 1.18 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
