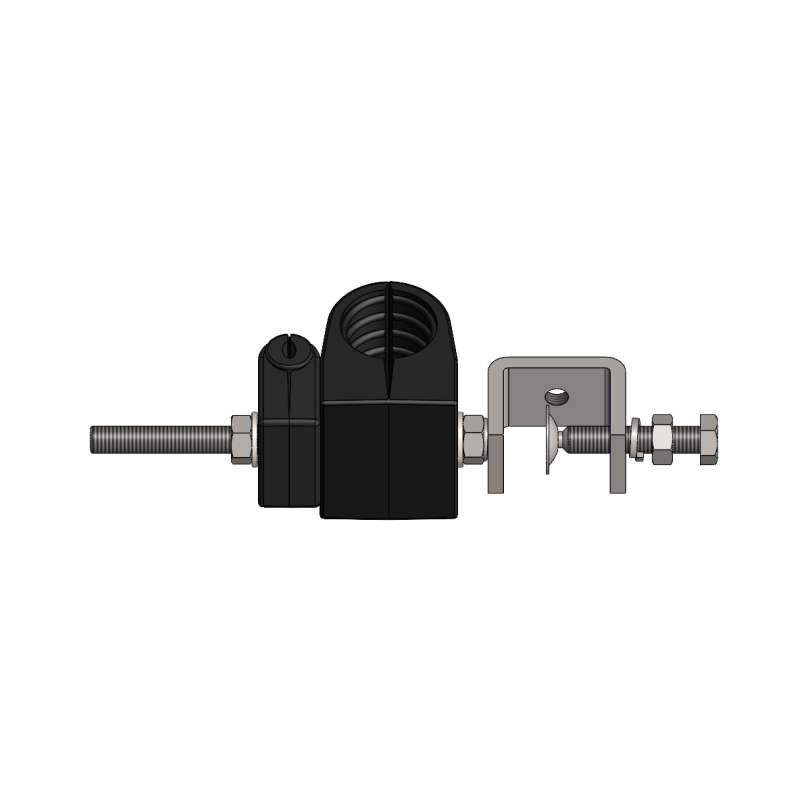

Feeder Cable Clamp, 2 holes, 1×7/8”+1×4-7mm

Item Number 6005010

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Suitable for cable type (4-7)+(27-29)mm.

Add to List Download Datasheet

Classification
Item Number	6005010
Part number	–
Detail Description	Feeder cable clamp, for 1×7/8” coaxial cable and 1×4-7mm OD cable

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Rubber Material	EPDM
Rubber Color	Black
Mounting	M8 Hardware
Cables Per Hanger	2
Dimensions
Height	42.0 mm \| 1.65 in
Width	50.0 mm \| 1.97 in
Length	190.0 mm \| 7.48 in
Threaded Rod Length	120.0 mm \| 4.72 in
Compatible Cable 1 OD, maximum	28.0 mm \| 1.10 in
Compatible Cable 1 OD, minimum	27.0 mm \| 1.06 in
Compatible Cable 2 OD, maximum	7.0 mm \| 0.275 in
Compatible Cable 2 OD, minimum	4.0 mm \| 0.157 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	320 mm \| 12.60 in
Width, Packed	220 mm \| 8.66 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.171 kg \| 0.377 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
