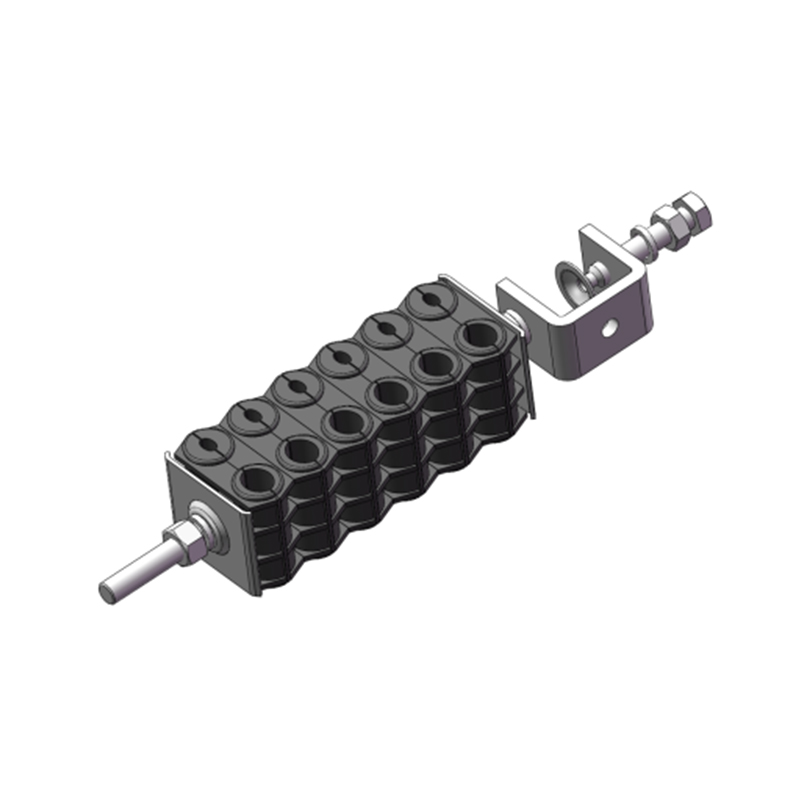

Feeder Cable Clamp, 12 holes, 6×4-7mm+6×9-14mm, With Metal Plate, Salt Spray 48 hours

Feeder Cable Clamp, 12 holes, 6×4-7mm+6×9-14mm, With Metal Plate, Salt Spray 48 hours

Item Number 6009443

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃.

Product Classification
Item Number	6009443
Part Number	–
Detail Description	Feeder cable clamp, for 6×4-7mm OD cable and 6×9-14mm OD cable, with metal plate, salt spray 48 hours

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Rubber Material	EPDM
Rubber Color	Black & Gray
Mounting	M8 Hardware
Cables Per Hanger	12
Dimensions
Height	40.0 mm \| 1.57 in
Width	44.5 mm \| 1.75 in
Length	250.0 mm \| 9.84 in
Threaded Rod Length	180.0 mm \| 7.08 in
Compatible Cable 1 OD, maximum	7.0 mm \| 0.276 in
Compatible Cable 1 OD, minimum	4.0 mm \| 0.157 in
Compatible Cable 2 OD, maximum	14.0 mm \| 0.55 in
Compatible Cable 2 OD, minimum	9.0 mm \| 0.354 in
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance	≥720 hours, base on ISO4892.3-1994
Environmental Strength Capability	Double cable weight
Salt Spray	≥48 Hours, base on IEC60028-2-11
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	120 mm \| 4.72 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.320 kg \| 0.705 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
