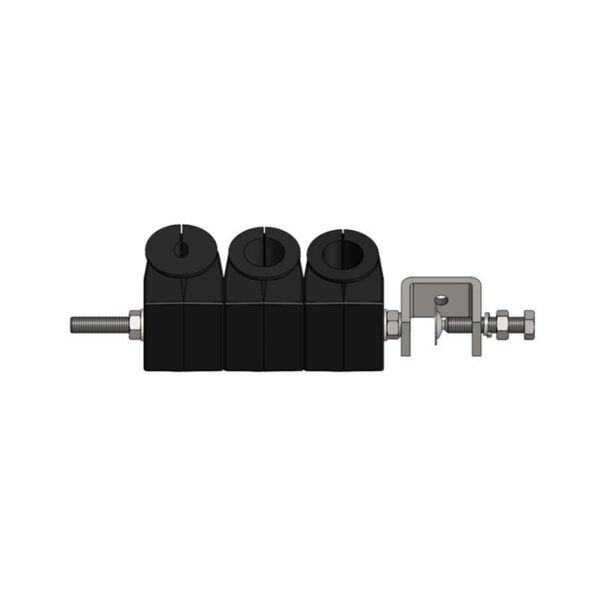

Feeder Cable Clamp, 3 holes, 2x21mm+1×7-11mm

Item Number 6005990

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃.

Classification
Item Number	6005990
Part number	–
Detail Description	Feeder cable clamp, for 2x21mm OD cable and 1×7-11mm OD cable

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Rubber Material	EPDM
Rubber Color	Black
Mounting	M8 Hardware
Cables Per Hanger	3
Dimensions
Height	49.0 mm \| 1.93 in
Width	50.0 mm \| 1.97 in
Length	240.0 mm \| 9.45 in
Threaded Rod Length	170.0 mm \| 6.69 in
Compatible Cable OD	21.0 mm \| 0.83 in
Compatible Cable 2 OD, maximum	11.0 mm \| 0.43 in
Compatible Cable 2 OD, minimum	7.0 mm \| 0.275 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.293 kg \| 0.646 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
