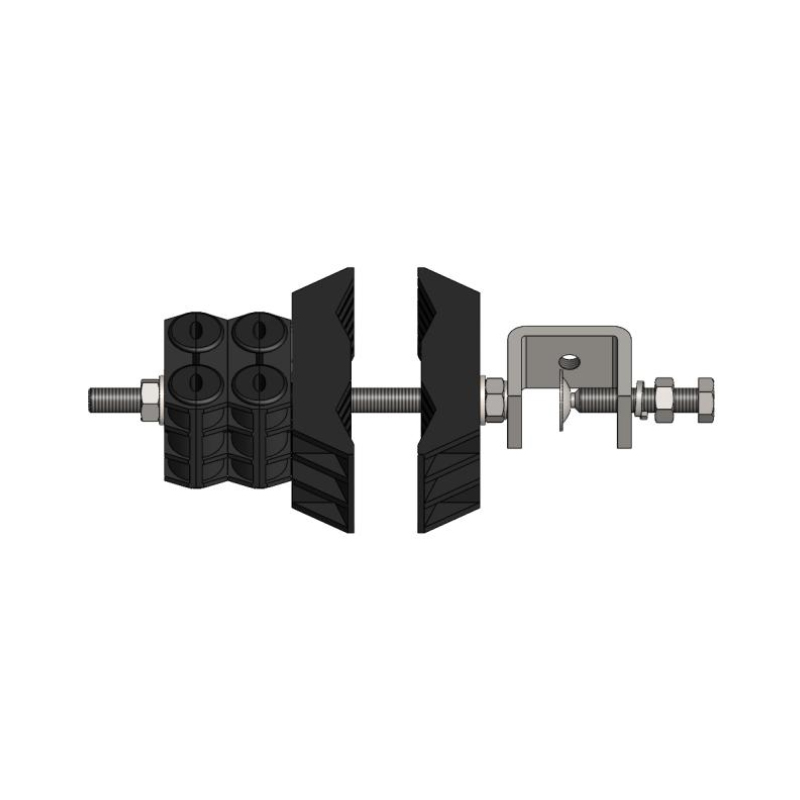

Feeder Cable Clamp, 6 holes, 2×11-23mm+4×4-7mm

Item Number 6006098

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃.

Classification
Item Number	6006098
Part number	–
Detail Description	Feeder cable clamp, for 2×11-23mm OD cable and 4×4-7mm OD cable

General Specifications
Metal Material	Stainless Steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Rubber Material	EPDM
Rubber Color	Black
Mounting	M8 Hardware
Cables Per Hanger	6
Dimensions
Height	40.0 mm \| 1.57 in
Width	85.5 mm \| 3.36 in
Length	210.0 mm \| 8.27 in
Threaded Rod Length	140.0 mm \| 5.51 in
Compatible Cable 1 OD, maximum	23.0 mm \| 0.91 in
Compatible Cable 1 OD, minimum	11.0 mm \| 0.43 in
Compatible Cable 2 OD, maximum	7.0 mm \| 0.276 in
Compatible Cable 2 OD, minimum	4.0 mm \| 0.157 in
Environmental Specifications
Operating Temperature	-40°C to +85°C(-40°F to+185°F)
Environmental Strength Capability	Double Cable Weight
UV Resistance	≥720 Hours, base on ISO4892.3-1994
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.293 kg \| 0.646 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
