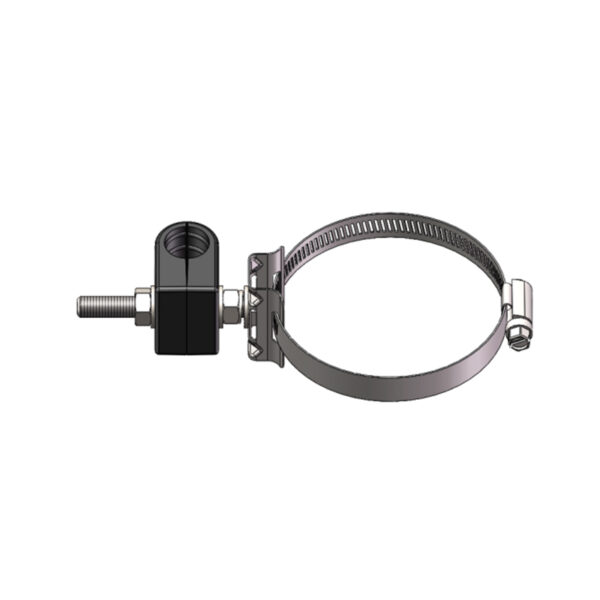

Feeder Cable Clamp, 1×1/2″ Single Hole

Item Number 6008069

Easy and quick installation. Robust design & material for outdoor use. Operation Temperature -40~85 ℃. Suitable for cable type 1/2 inch.

Add to List Download Datasheet

Product Classification
Item Number	6008069
Part Number	–
Detail Description	Feeder cable clamp, for 1/2” cable, 1 way, includes hardware and round member adapter

General Specifications
Metal Material	Stainless steel 304
Metal Color	Natural
Block Material	PP
Block Color	Black
Cables Per Hanger	1
Applied Pole Size	35 – 125 mm \| 1.375 – 5.0 in
Dimensions
Height	36.5 mm \| 1.44 in
Width	125.0 mm \| 4.92 in
Length	195.0 mm \| 7.68 in
Compatible Cable Jacket OD, maximum	17.0 mm \| 0.67 in
Compatible Cable Jacket OD, minimum	16.0 mm \| 0.63 in
Normal Size	1/2 in
Environmental Specifications
Operating Temperature	-40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance	≥720 hours, base on ISO4892.3-1994
Environmental Strength Capability	Double cable weight
Packaging and Weights
Height, Packed	300 mm \| 11.81 in
Width, Packed	300 mm \| 11.81 in
UOM	1 Pcs
Packaging	Bag
Weight, Gross	0.1 kg \| 0.22 lbs
Certifications and Compliance
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
RoHS	Compliant
