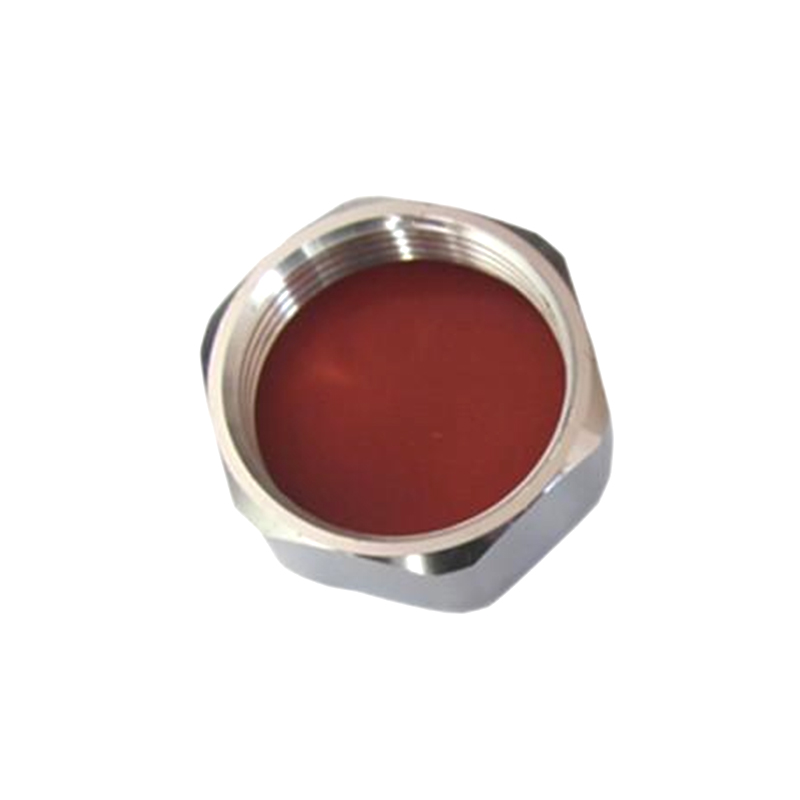

End cap, for 7/16 DIN female connector
Item Number 6004178
Protect DIN Female connector from dust intrusion and other physical damage. Waterproof to IP67 when mated. RoHS certified.
Product Classification
| Product Classification | |
| Material Code | 6004178 |
| Part Number | - |
| Status | Active |
| Detail Description | End cap, for 7/16 DIN female connector |
General Specifications
| General Specifications | |
| Material | Brass |
| Surface Treatment | Nickel plating |
| Connector Type | 7/16 DIN female |
| Dimensions | |
| Outer Diameter | 32 mm |
| Height | 16.5 mm |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C |
| Waterproof | IEC 60529, IP67 |
| Packaging and Weights | |
| Height, packed | 25 mm | 0.98 in |
| Width, packed | 40 mm | 1.57 in |
| Length, packed | 40 mm | 1.57 in |
| Packaging Quantity and UOM | 1 Pcs |
| Weight, gross | 0.06 kg | 0.13 lb |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
