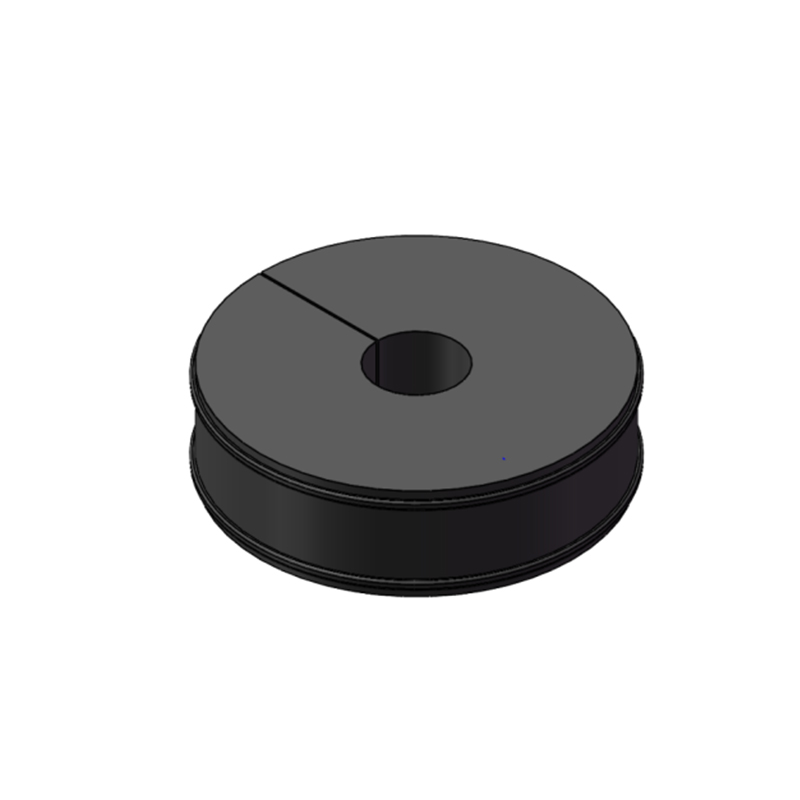

Cushion Insert With 1Hole For 5/8’’ Cable

Item Number 6002049

Excellent for indoor & outdoor use. Easy to install. Good weatherproof performance.

ISORoHS

Product Classification

Product Classification
Material Number 6002049
Part Number -
Status Active
Detail Description Cushion insert with 1 hole for 5/8’’ cable

General Specifications

General Specifications
Material EPDM
Cable type Corrugated | Smoothwall
Cable size 5/8’’
Color Black
Dimensions
Outer diameter(OD) 85 mm | 3.34 in
Height 24 mm |1 in
Nominal size 5/8’’
Environmental Specifications
Operating temperature -40℃ to +85℃(-40℉to +185℉)
UV resistance ≥720Hours,based on ISO 4892-3
Waterproof resistance IP66,based on ISO20653:2013
Packaging and Weights
Bag width 220 mm | 8.66 in
Bag length 320 mm | 12.60 in
Packaging quantity and UOM 1 pcs
Weight gross 0.151 kg | 0.333 lb
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
