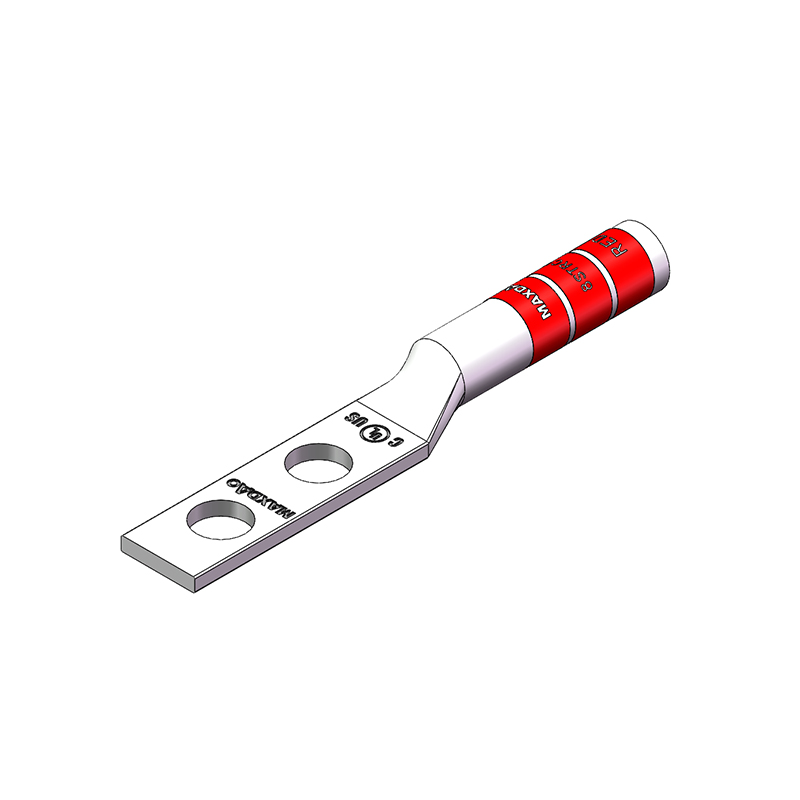

Copper Lug, AWG 8# , two hole 1/4”, hole spacing 5/8”, long barrel, without inspection window,red
Item Number 6003153
Copper cable lugs are designed for connecting copper cables, coils and Bus-bars. Copper Tube Terminals between 6mm2 & 800mm2 have bell entry to ensure easy entry even for flexible conductors. Incorporates inspection window to check the correct cable positioning. The barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation.”colour code” help choose the right connector, the colour name is also printed in order to avoid problems for those who are colour-blind.
Product Classification
| Product Classification | |
| Item Number | 6003153 |
| Part Number | – |
| Detail Description | Copper Lug, AWG 8# , two hole 1/4”, hole spacing 5/8”, long barrel, without inspection window,red |
General Specifications
| General Specifications | |
| Colour code | Red |
| Material | Copper |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Surface | Tin-plated |
| Inspection Window | Without inspection window |
| Dimensions
|
|
| Bolt Size | 0.27 in | 6.9 mm |
| Hole Spacing (H) | 0.63 in | 16.0 mm |
| Tang Width (C) | 0.48 in | 12.2 mm |
| Barrel length (B) | 1.00 in | 25.4 mm |
| Overall length (L) | 2.58 in | 65.5 mm |
| Inner diameter (ID) | 0.18 in | 4.6mm |
| Outer diameter(OD) | 0.27 in | 6.9 mm |
| Electrical Specifications | |
| Rating – Maximum Voltage | 35KV |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +90°C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Packaging and Weights | |
| Included | Lug |
| Packaging Quantity and UOM | 1 pcs |
| Piece Weight | 0.05 lb | 0.02 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| UL | Compliant |
Additional Documentation and Resources
-
Product Brochure
-
Standards and Regulations
