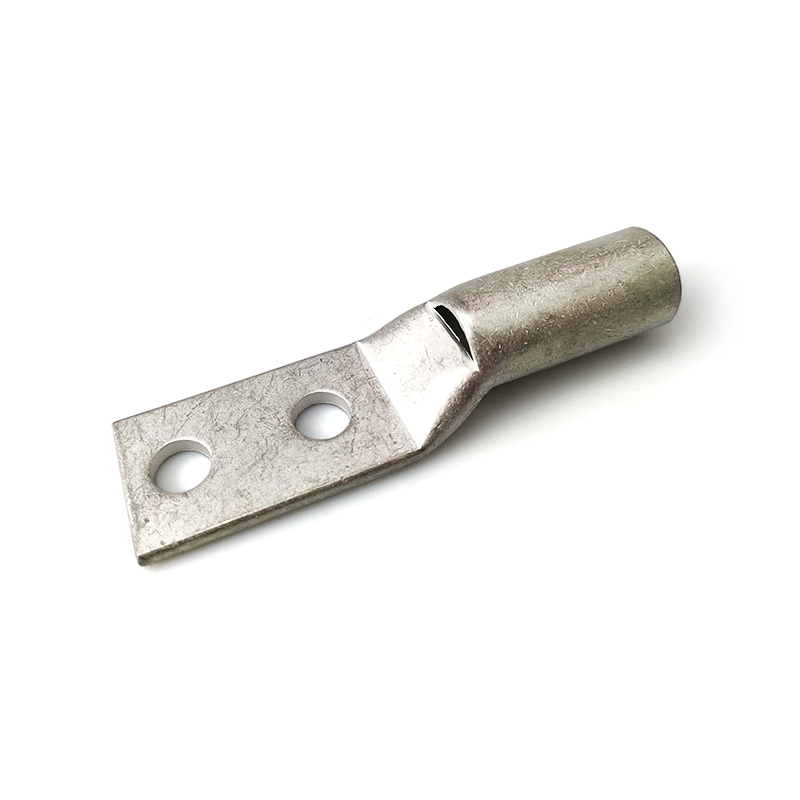

Copper Lug, AWG 600KCM, two hole 1/2”, hole spacing 1-3/4”, long barrel, without inspection window
Item Number 6004821
Copper cable lugs are designed for connecting copper cables, coils and Bus-bars. Copper Tube Terminals between 6mm2 & 800mm2 have bell entry to ensure easy entry even for flexible conductors. The absence without inspection window prevents the entry of water or moisture into the crimped joint making these terminals suitable for outdoor applications. Long barrel provides high pull-out force and increased retention for improved mechanical and electrical performance.
Product Classification
| Product Classification | |
| Material Code | 6004821 |
| Part Number | – |
| Detail Description | Copper Lug, AWG 600KCM, two hole 1/2”, hole spacing 1-3/4”, long barrel, without inspection window |
General Specifications
| General Specifications | |
| Material | Copper |
| Tongue Type | Straight |
| Tongue Angle | Straight |
| Surface | Tin-plated |
| Inspection Window | Without inspection window |
| Dimensions | |
 |
|
| Bolt Size | 1/2 in | 13.4 mm |
| Hole Spacing (H) | 1.75 in | 44.5 mm |
| Tang Width (C) | 1.70 in | 43.2 mm |
| Barrel length (B) | 2.69 in | 68.3 mm |
| Overall length (L) | 6.36 in | 161.5 mm |
| Inner diameter (ID) | 0.92 in | 23.4 mm |
| Outer diameter (OD) | 1.19 in | 30.2 mm |
| Electrical Specifications | |
| Rating – Maximum Voltage | 35KV |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +90°C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Packaging and Weights | |
| Included | Lug |
| Packaging Quantity and UOM | 1 pcs |
| Piece Weight | 0.869 lb | 0.395 kg |
| Certifications and Certificated | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| UL&CSA | Compliant |
