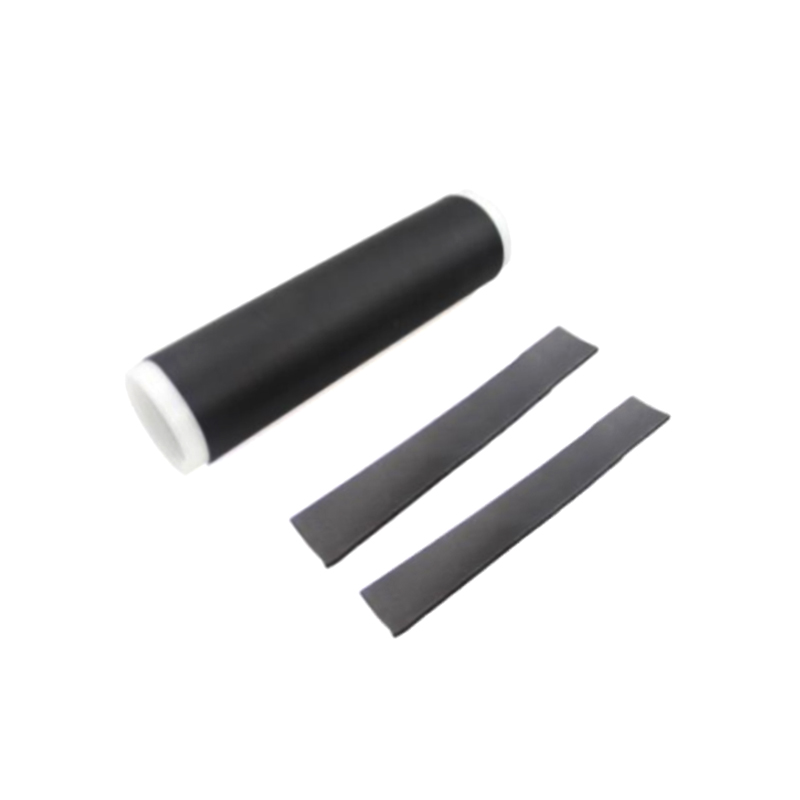

Cold Shrink Tube, φ70x275mm, Black
Item Number 6008318
Easy and quick installation. Manufactured by EPDM rubber. Suitable for a wide range of cable sizes. No special tools or training required for installation. Offering good mechanical, insulation and sealing protection.
Product Classification
| Product Classification | |
| Item Number | 6008318 |
| Part Number | – |
| Detail Description | Cold shrink tube, φ70x275mm, for 1-5/8 in or 1-1/4 in to 1/4 in through 1/2 in connections, EVA tape included |
General Specifications
| General Specifications | |
| Cold shrink tube Material | EPDM |
| Tape Material | EVA |
| Cable type | Corrugated | Elliptical Waveguide | Smoothwall |
| Cable Range | Φ7.37 – 30.48 mm | 0.29 – 1.20 in |
| Color | Black |
| Mastic(Y/N) | N |
| Dimensions | |
| Length Before Shrink | 275 mm | 10.83 in |
| Length After Shrink | 305 mm | 12.0 in |
| Inner Diameter Before Shrink(ID) | 69.85 mm | 2.75 in |
| Inner Diameter After Shrink(ID) | 22.0 mm | 0.87 in |
| Thickness After Shrink | 3.5 mm | 0.138 in |
| Environmental Specifications | |
| Operating Temperature | -60 °C to +90 °C (-76 °F to +194 °F) |
| Weatherproof Resistance | IP67, based on ISO20653:2013 |
| UV Resistance | ≥1000 hours, base on ASTM G154-16 |
| Packaging and Weights | |
| Height, Packed | 80 mm | 3.15 in |
| Width, Packed | 80 mm | 3.15 in |
| Length, Packed | 310 mm | 12.20 in |
| Included | One cold shrink tube | Two EVA tape | One installation guide |
| UOM | 1 Pcs |
| Packaging | Bag |
| Weight, Gross | 0.294 kg | 0.648 lbs |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
