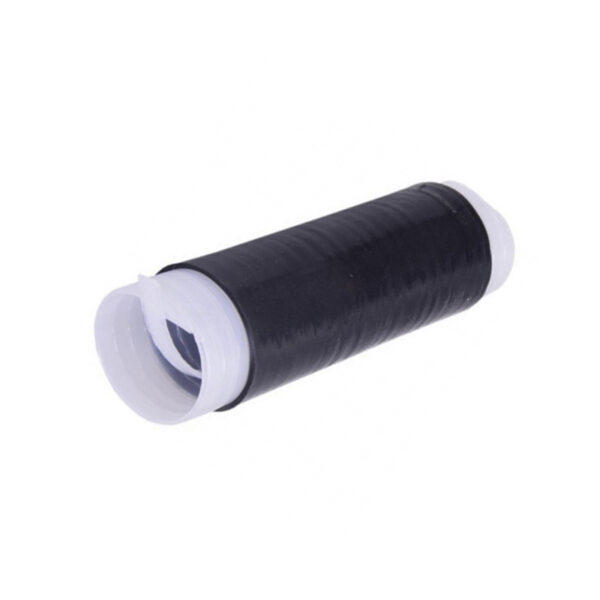

Cold Shrink Tube,φ45×80mm
Item Number 6003958
Manufactured by silicone rubber. Excellent for outdoor use & indoor use. Excellent weatherproof performance.
Product Classification
Product Classification | |
Material Number | 6003958 |
Part Number | - |
Status | Active |
Detail description | Cold shrink tube,φ45×80mm |
General Specifications
General Specifications | |
Material | Silicone rubber |
Cable type | Corrugated | Elliptical Waveguide | Smoothwall |
Cable size | φ20mm-φ40mm |
Color | Black |
Mastic(Y/N) | N |
Shrink ratio | 3:1 |
Dimensions | |
Length before shrink | 80 mm | 3.15 in |
Length after shrink | 110 mm | 4.33 in |
Inner diameter before shrink(ID) | 45 mm | 1.77 in |
Inner diameter after shrink(ID) | 17 mm | 0.67 in |
Thickness after shrink | 2.3 mm | 0.09 in |
Environmental Specifications | |
Operating temperature | -40℃ to +85℃(-40℉to +185℉) |
Weatherproof resistance | IP67,based on ISO20653:2013 |
UV resistance | ≥720Hours,based on ISO 4892-3 |
Packaging and Weights | |
Bag width | 260 mm | 10.24 in |
Bag length | 320 mm | 12.6 in |
Packaging quantity and UOM | 1 pcs |
Weight gross | 0.026 kg | 0.057 lb |
Certifications and Compliance | |
ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
ROHS | Compliant |
