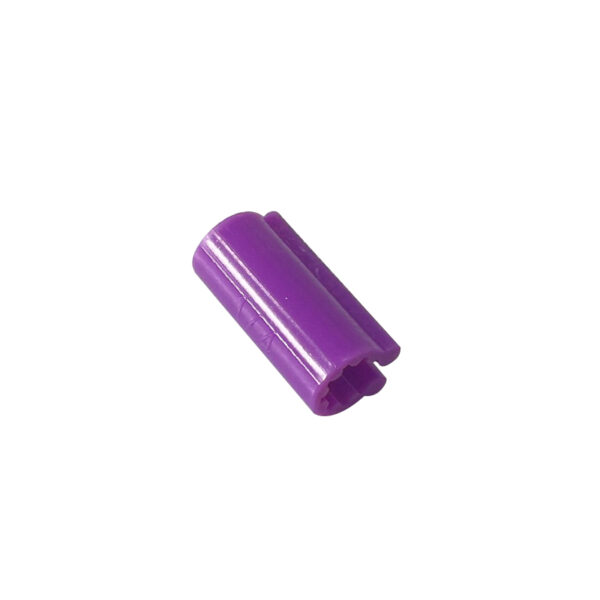

Cable Color Clip, for 1/4 in Cable, Purple
Item Number 6006415
Easy and quick installation, no hardware needed. Robust design & material for outdoor / indoor use. Eliminates need to identify cables with colored tape.
Product Classification
| Product Classification | |
| Material Code | 6006415 |
| Part Number | - |
| Status | Active |
| Detail Description | Cable identification clip, for 1/4 in cable, purple |
General Specifications
| General Specifications | |
| Material Type | PC |
| Color | Purple |
| Dimensions | |
| Height | 0.787 in | 20 mm |
| Width | 0.346 in | 8.8 mm |
| Compatible Cable Jacket OD, maximum | 0.295 in | 7.5 mm |
| Compatible Cable Jacket OD, minimum | 0.217 in | 5.5 mm |
| Nominal Size | 1/4 in cable |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| UV Resistance | ≥1000 hours, base on ISO 4892.3-1994 |
| High and Low Temperature Storage Test | ≥72 hours, base on IEC 60068-2-2 |
| Retention Force | 30-60 N (6.74-13.48 lbf), base on cable |
| Duty Cycle | ≥200 cycles |
| Packaging and Weights | |
| Height, packed | 0.394 in | 10 mm |
| Width, packed | 7.874 in | 200 mm |
| Length, packed | 7.874 in | 200 mm |
| Included | Cable identification clip |
| Packaging Quantity and UOM | Kit of 100 |
| Weight, gross | 0.212 lb | 0.096 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
