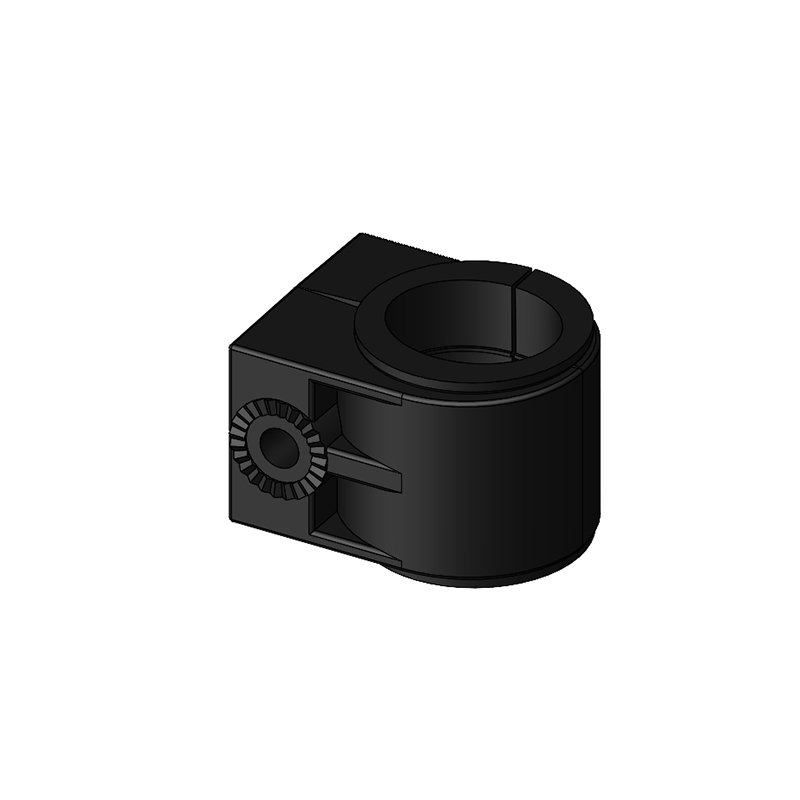

Cable Block Hanger with Barrel Cushion, Single Type, for 30-33 mm Cable

Item Number 6007504

Easy and quick installation. Robust design & material for outdoor / indoor use. The design of zigzag structureholds blocks in place when stacked.

ISORoHS

Product Classification

Product Classification
Material Number 6007504
Part Number -
Status Active
Detail Description Cable block hanger with barrel cushion, for 30-33 mm Cable, single run

General Specifications

General Specifications
Block Material PP
Barrel Cushion Material EPDM
Color Black
Mounting Mounting hole for M8 threaded rod
Dimensions
Height 2.205 in | 56 mm
Width 2.559 in | 65 mm
Length 2.992 in | 76 mm
Compatible Cable Jacket OD, maximum 1.299 in | 33 mm
Compatible Cable Jacket OD, minimum 1.181 in | 30 mm
Environmental Specifications
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 Hours, based on ISO 4892-3
Packaging and Weights
Height, packed 2.559 in | 65 mm
Width, packed 11.811 in | 300 mm
Length, packed 11.811 in | 300 mm
Included Single cable block hanger with barrel cushion
UOM 1 kit
Packaging Bag
Weight, gross 0.346 lb | 0.157 kg
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
