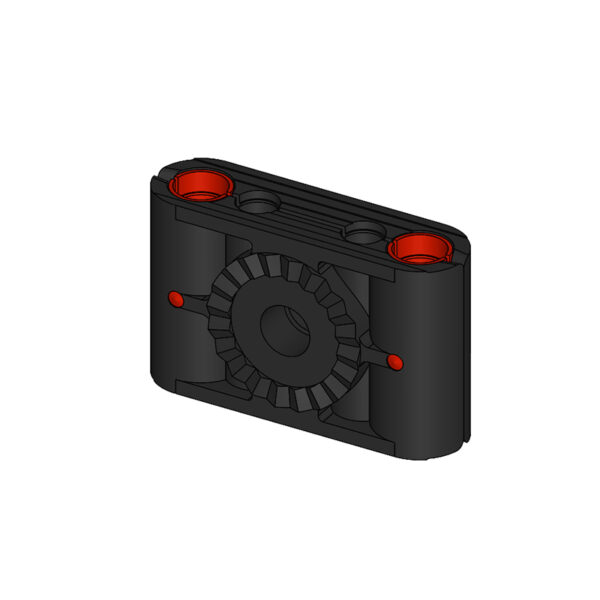

Cable Block Hanger, Quadruple Type, for 2x(10-12)+2x8mm Cable

Item Number 6006509

Easy and quick installation. Robust design & material for outdoor / indoor use. The design of cylindrical pin holds blocks in place when stacked.

ISORoHS

Product Classification

Product Classification
Material Code 6006509
Part Number -
Status Active
Detail Description Cable block hanger for 2x(10-12)+2x8 mm Cable, quadruple runs

General Specifications

General Specifications
Material PP
Block Color Black
Insert Color Red
Mounting Mounting hole for 3/8 in or M10 threaded rod
Dimensions
Height 1.575 in | 40 mm
Width 0.827 in | 21 mm
Length 2.559 in | 65 mm
Compatible Cable Jacket OD, maximum 0.472 in | 12 mm
Compatible Cable Jacket OD, minimum 0.315 in | 8 mm
Environmental Specifications
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Environmental Strength Capability Double cable weight
UV Resistance ≥1000 hours,base on ISO4892.3-1994
Packaging and Weights
Bag,Height 1.575 in | 40 mm
Bag,Width 7.874 in | 200 mm
Bag,Length 7.874 in | 200 mm
Included Quadruple Block Hanger
Packaging quantity and UOM Kit of 10
Weight, gross 0.617 lb | 0.28 kg
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant

Additional Documentation and Resources
