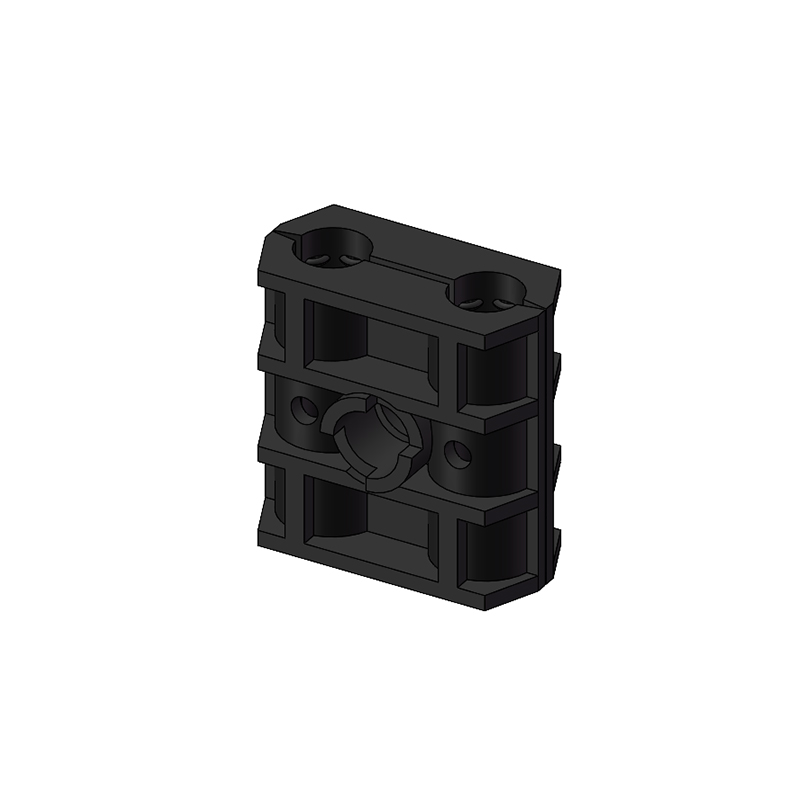

Cable Block Hanger, Double Type, for 7-9 mm Cable
Item Number 6003036
Easy and quick installation. Robust design & material for outdoor / indoor use.
Product Classification
| Product Classification | |
| Material Code | 6003036 |
| Part Number | - |
| Status | Active |
| Detail Description | Block hanger for 7-9 mm cable, double runs |
General Specifications
| General Specifications | |
| Material | PP |
| Color | Black |
| Mounting | Mounting hole for M8 threaded rod |
| Dimensions | |
| Height | 1.417 in | 36 mm |
| Width | 0.748 in | 19 mm |
| Length | 1.535 in | 39 mm |
| Compatible Cable Jacket OD, maximum | 0.354 in | 9 mm |
| Compatible Cable Jacket OD, minimum | 0.276 in | 7 mm |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Environmental Strength Capability | Double cable weight |
| UV Resistance | ≥1000 hours,base on ISO4892.3-1994 |
| Packaging and Weights | |
| Bag,Height | 1.417 in | 36 mm |
| Bag,Width | 8.661 in | 220 mm |
| Bag,Length | 12.598 in | 320 mm |
| Included | Double Block Hanger |
| UOM | 1 pcs |
| Packaging | Bag |
| Weight, gross | 0.011 lb | 0.005 kg |
| Certifications and Compliance | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
