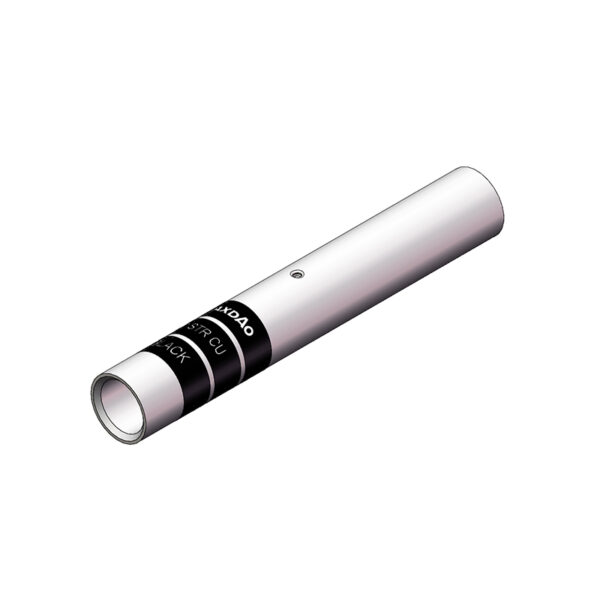

Butt Splice , AWG 2/0#, long barrel,black

Item Number 6007828

Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used. Long barrel provides high pull-out force and increased retention for improved mechanical and electrical performance. Internal wire stops to prevent over-insertion of conductor. Seamless, high conductivity copper tubing for grounding and bonding applications. “colour code” help choose the right connector, the colour name is also printed in order to avoid problems for those who are colour-blind.

ISORoHSulcert badge

Product Classification

Product Classification
Item Number 6007828
Part Number
Detail Description Butt Splice , AWG 2/0#, long barrel,black

General Specifications

General Specifications
Colour Code Brown
Terminal Material Copper
Surface Tin-plated
Dimensions
Dimensions 28
Overall length (L) 3.30 in | 83.8 mm
Inner diameter (ID) 0.45 in | 11.4 mm
Outer diameter (OD) 0.58 in | 14.7 mm
Electrical Specifications
Rating – Maximum Voltage 35 KV
Environmental Specifications
Operating Temperature -40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature -40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
UOM 1 pcs
Packaging Bag
Weight, gross 0.088 lb | 0.040 kg
Certifications and Certificated
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
UL&CSA Compliant
