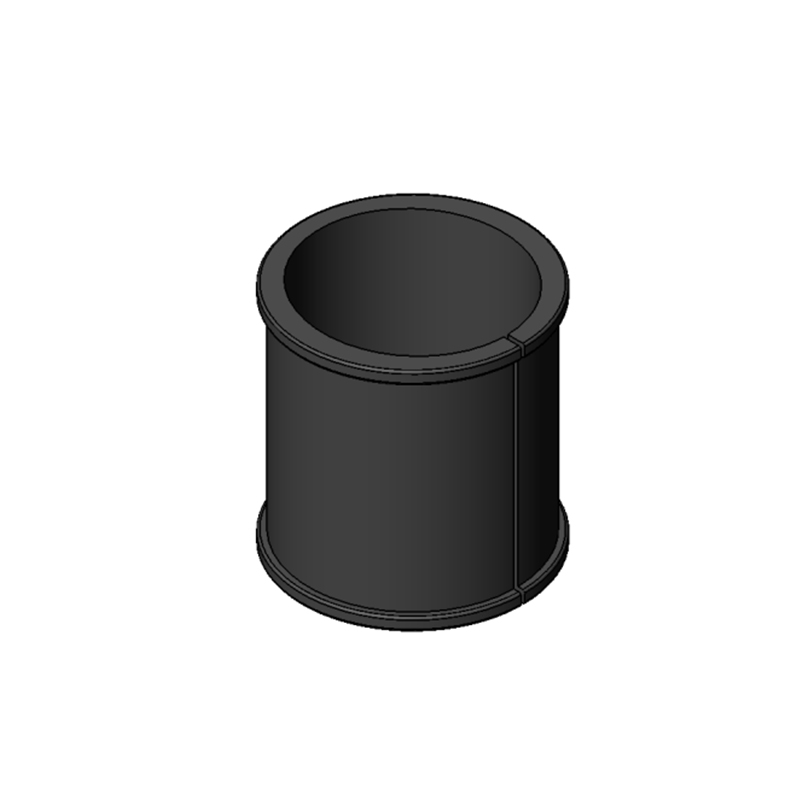

Barrel Cushion with 44-46 mm hole,use with 1-5/8 in Hanger

Item Number 6004180

Easy and quick installation. Robust design & material for outdoor / indoor use.

ISORoHS

Product Classification

Product Classification
Material Number 6004180
Part Number -
Status Active
Detail Description Barrel cushion with 44-46 mm hole, use with 1-5/8 in cable block hanger, 1 holes

General Specifications

General Specifications
Material EPDM
Color Black
Mounting 1-5/8 in cable block hanger or 1-5/8 in snap-in
Dimensions
Height 2.205 in | 56 mm
Width 2.244 in | 57 mm
Length 2.244 in | 57 mm
Compatible Cable Jacket OD, maximum 1.811 in | 46 mm
Compatible Cable Jacket OD, minimum 1.732 | 44 mm
Environmental Specifications
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
UV Resistance ≥720 Hours, based on ISO 4892-3
Packaging and Weights
Height, packed 2.205 in | 56 mm
Width, packed 8.661 in | 220 mm
Length, packed 12.598 in | 320 mm
Included Barrel cushion
UOM Kit of 10
Packaging Bag
Weight, gross 1.076 lb | 0.488 kg
Certifications and Compliance
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
RoHS Compliant
