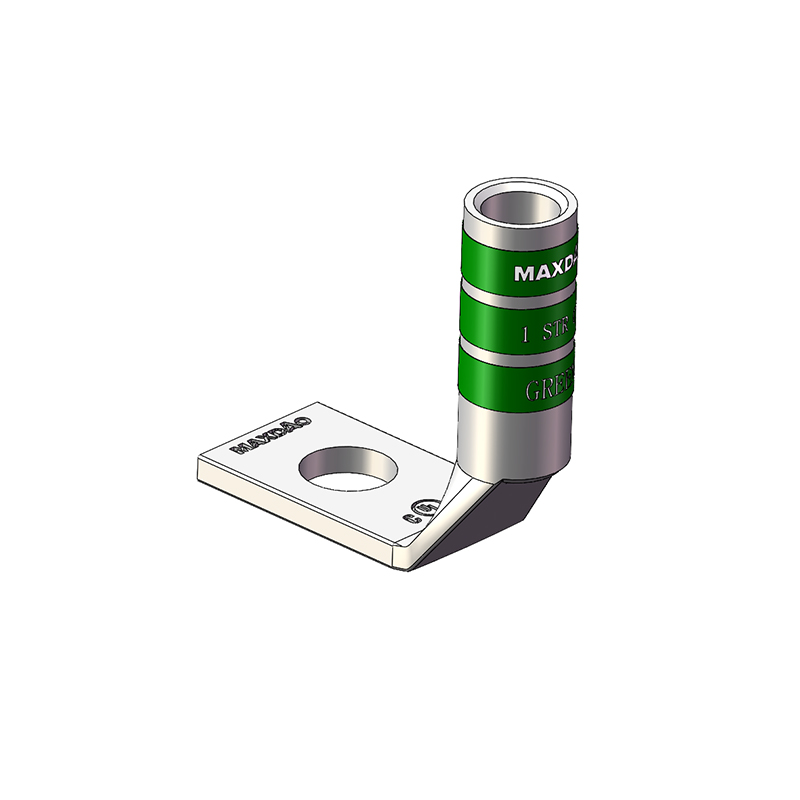

90°Copper Lug,AWG1#,one hole 3/8″,standard barrel,with inspection window,green
Item Number 6009312
Copper cable lugs are designed for connecting copper cables, coils and Bus-bars.Copper Tube Terminals between 6mm2 & 800mm2 have bell entry to ensure easy entry even for flexible conductors.Incorporates inspection window to check the correct cable positioning. “colour code” help choose the right connector, the colour name is also printed in order to avoid problems for those who are colour-blind. 90 degree standard barrel for limited space applications.
Product Classification
| Product Classification | |
| Item Number | 6009312 |
| Part Number | – |
| Detail Description | 90°Copper Lug,AWG1#,one hole 3/8″,standard barrel,with inspection window,green |
General Specifications
| General Specifications | |
| Colour Code | Green |
| Material | Copper |
| Tongue Type | Standard |
| Tongue Angle | 90 degree |
| Surface | Tin-plated |
| Inspection Window | With inspection window |
| Dimensions
|
|
| Bolt Size | 3/8 in | 10.2 mm |
| Tang Width (C) | 0.67 in | 17.0 mm |
| Barrel length (B) | 0.88 in | 22.4 mm |
| Overall length (L) | 1.51 in | 38.4 mm |
| Inner diameter (ID) | 0.36 in | 9.1 mm |
| Outer diameter (OD) | 0.46 in | 11.7 mm |
| Electrical Specifications | |
| Rating – Maximum Voltage | 35KV |
| Environmental Specifications | |
| Operating Temperature | -40 °C to +90°C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Packaging and Weights | |
| Included | Lug |
| Packaging Quantity and UOM | 1 pcs |
| Piece Weight | 0.099 lb | 0.045 kg |
| Certifications | |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| RoHS | Compliant |
| UL | Compliant |
